Figure 6

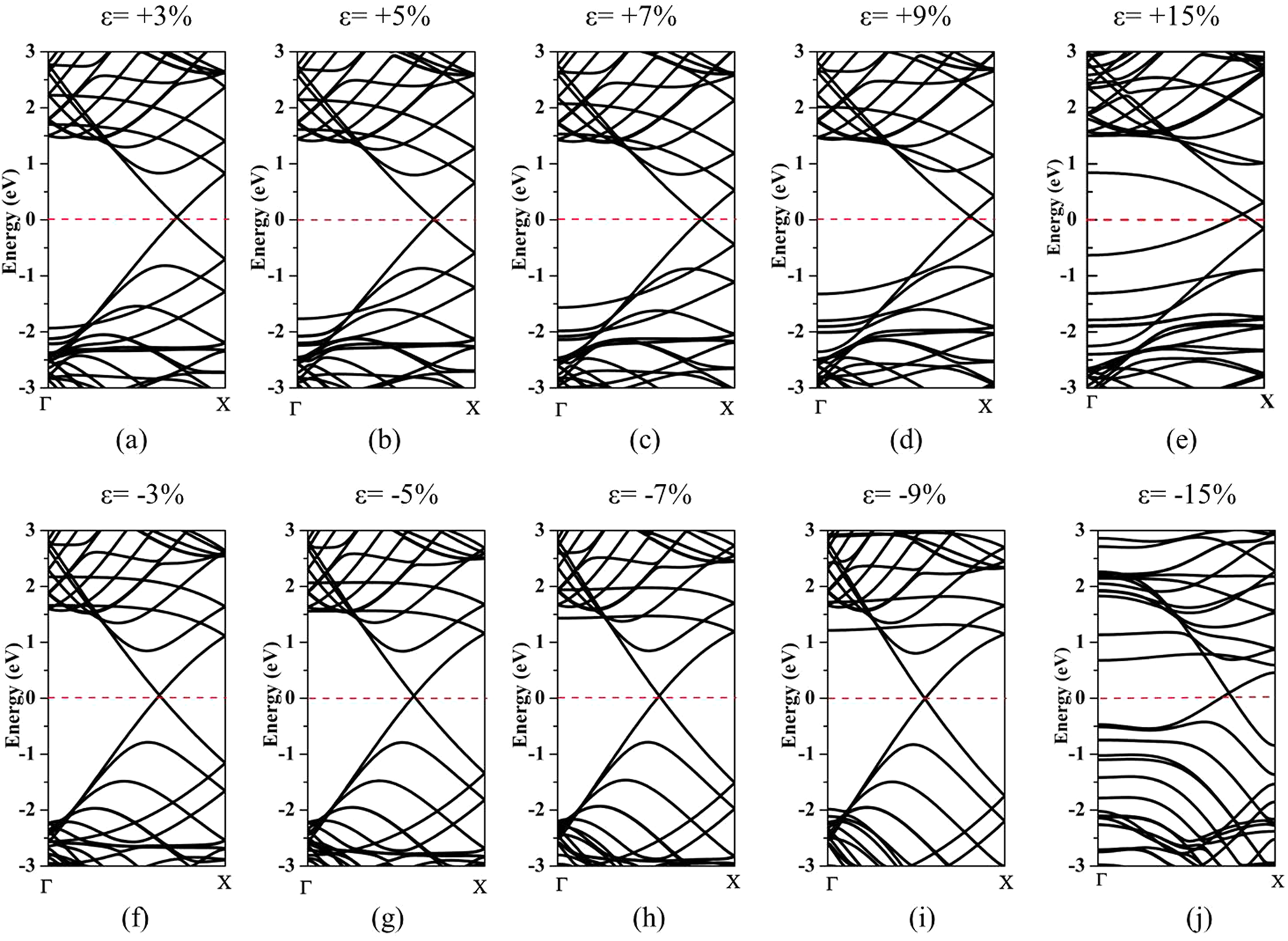

Band structures of ZnO@(9, 9)-CNT under different uniaxial strains (±3–±15%). (a–e) represent the tensile strain applied along the z axis of the complex structure and (f–j) represent the compressive strain respectively.
