Figure 4
From: ERK1/2-dependent gene expression in the bovine ovulating follicle

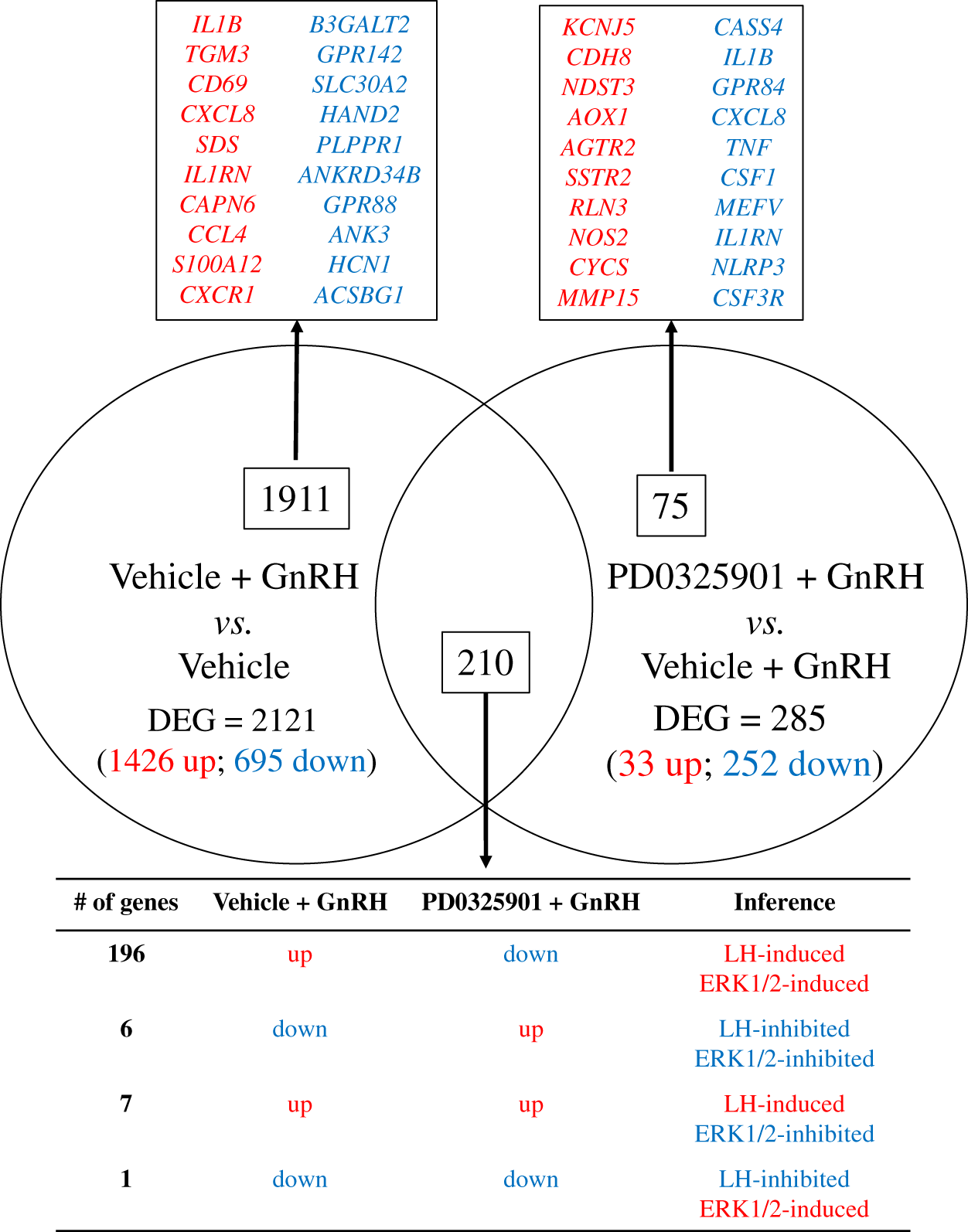

Venn diagram of differentially expressed genes (DEGs) for two pairwise comparisons: Vehicle + GnRH vs. Vehicle and PD0325901 + GnRH vs. Vehicle + GnRH. Top 10 up-regulated (red) and down-regulated (blue) DEGs are listed below for each specific comparison based on Log2FoldChange. The 210 DEGs that were common in both comparisons are represented with their respective direction of regulation in each comparison.
