Figure 2
From: Self-passivating (Re,Al)B2 coatings synthesized by magnetron sputtering

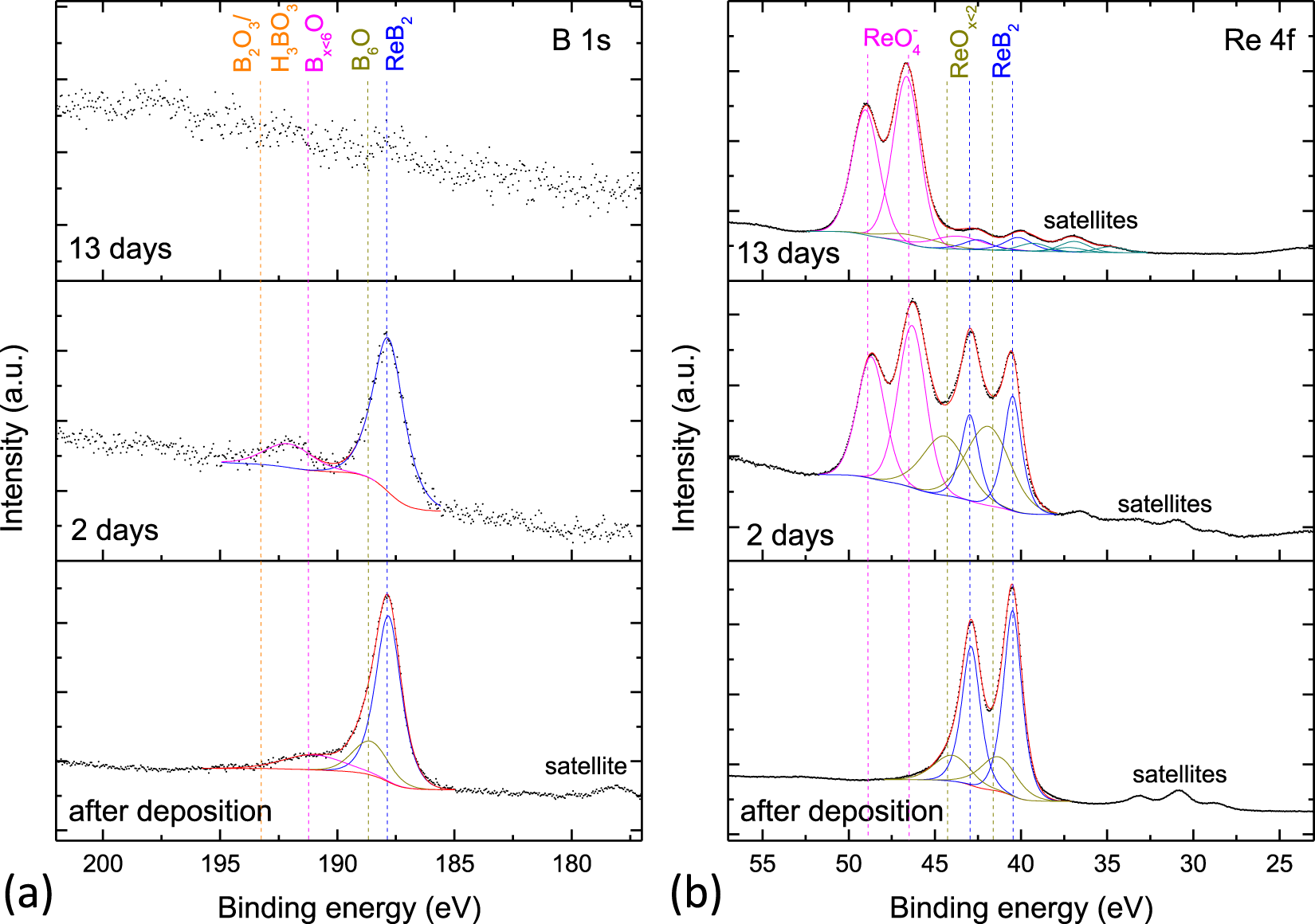

XPS scans of Re0.85B2. Shown are spectra of the (a) B 1 s and (b) Re 4 f transitions after different air exposure durations. The position of the components fitted to the spectra is indicated by drop-lines.
