Figure 5
From: Longitudinal monoaminergic PET imaging of chronic proteasome inhibition in minipigs

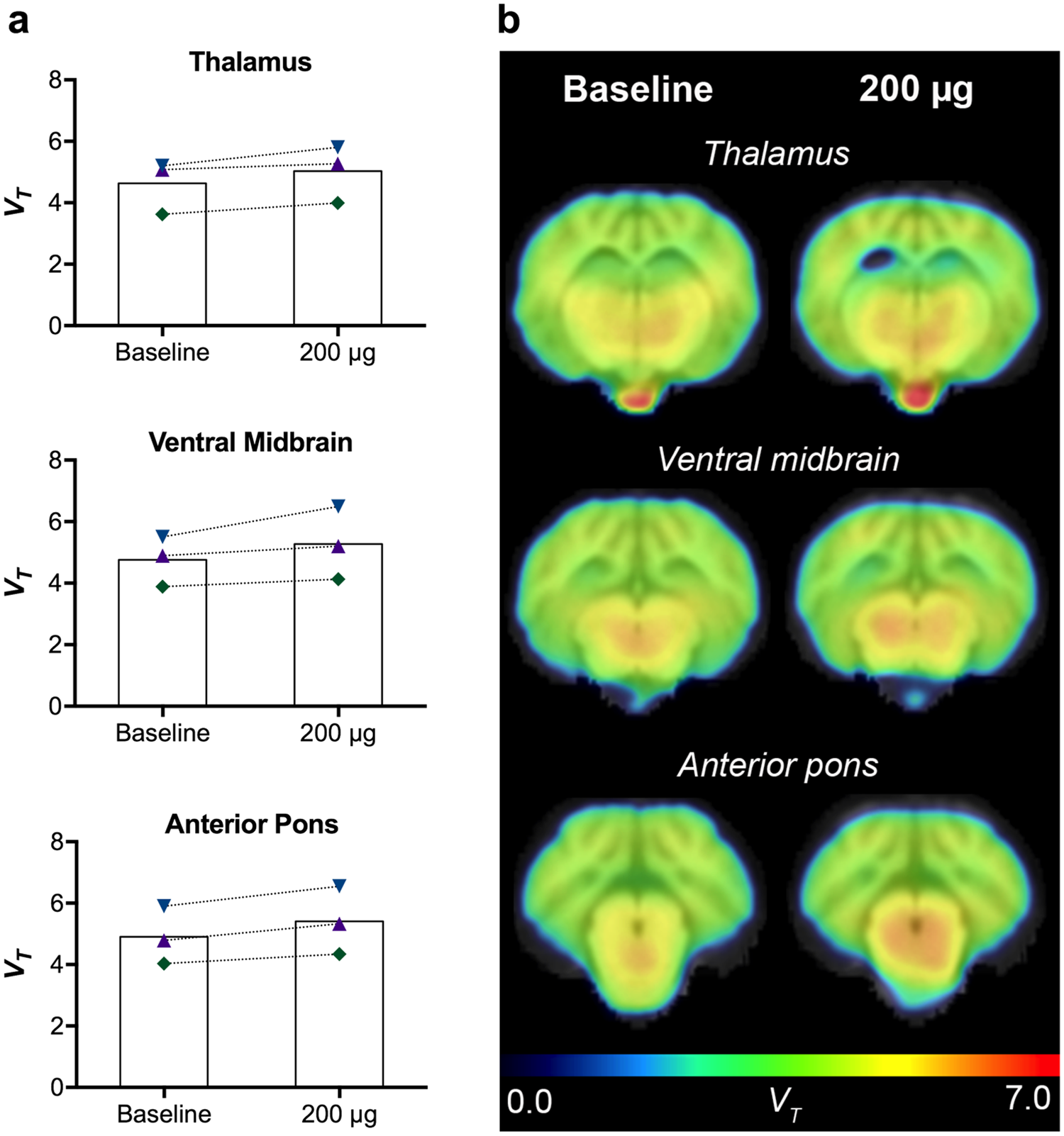

Microligal activation determined by in vivo [11C]-PK11195 PET. (a) [11C]-PK11195 VT values are displayed for thalamus, ventral midbrain and anterior pons after saline (baseline) and a dose of 200 μg lactacystin. (b) VT parametric maps are shown for a representative minipig at the baseline and 200 μg dose at coronal sections corresponding to the level of thalamus, ventral midbrain and anterior pons.
