Figure 2

From: Magnetic Resonance Imaging for tracking cellular patterns obtained by Laser-Assisted Bioprinting

Figure 2

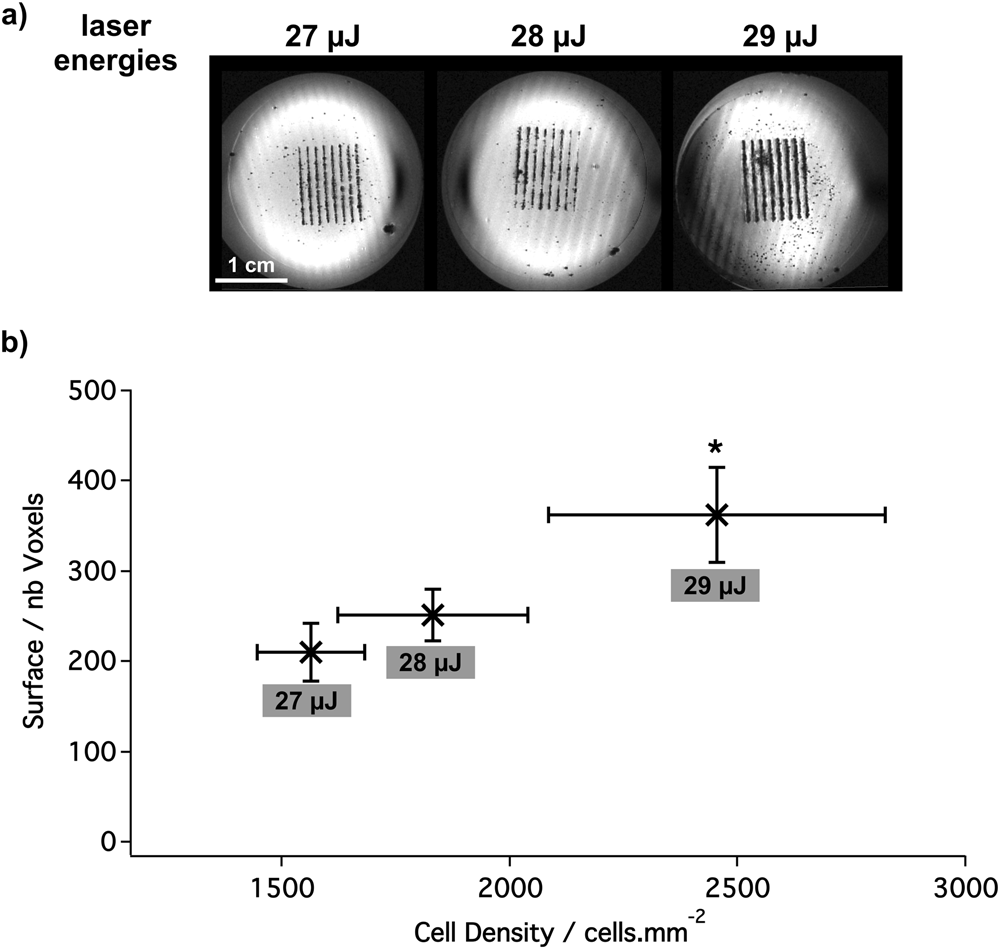

Determination of the optimal cell density. (a) MR T2*-weighted images of the line pattern (spatial resolution: 137 × 137 × 52 µm) after the bioprinting of MPIO-labeled MSC with increasing density (laser energy of 27 µJ, 28 µJ and 29 µJ). (b) Quantification of the above MR images through the measurement of the amount of voxels per line in function of the density.
