Figure 6
From: Magnetic Resonance Imaging for tracking cellular patterns obtained by Laser-Assisted Bioprinting

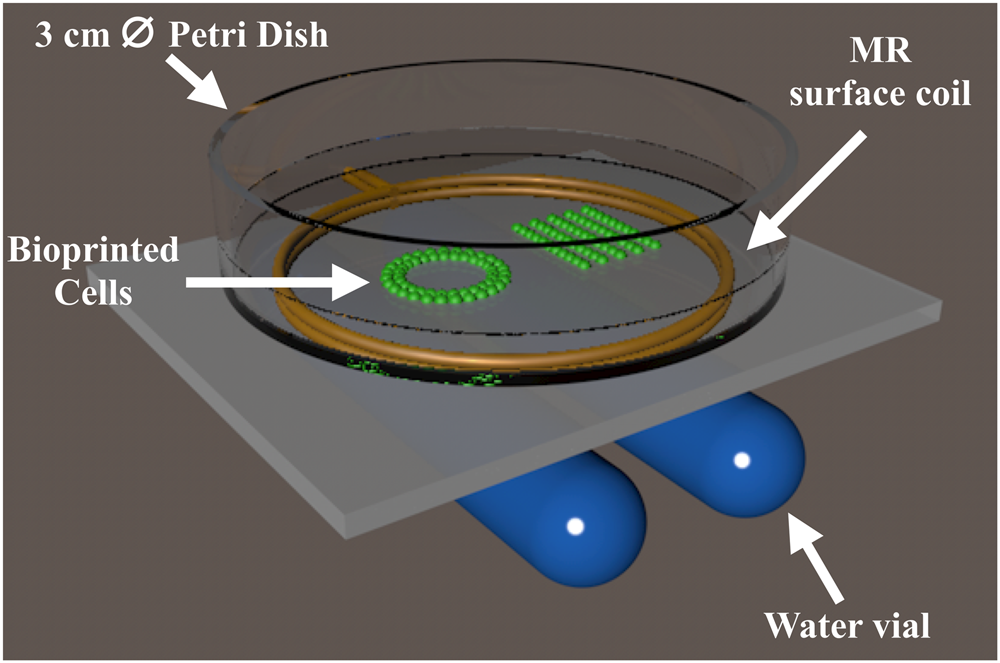

MR set up for the in vitro MR imaging of Petri dish containing MPIO-labeled cells bioprinted in different patterns. The coil is represented as the two golden rings, where the petri dish is attached on. Two tubes filled of water are positioned under the coil for the MR adjustments. Bioprinted cells are shown in green and are immersed in cell culture medium.
