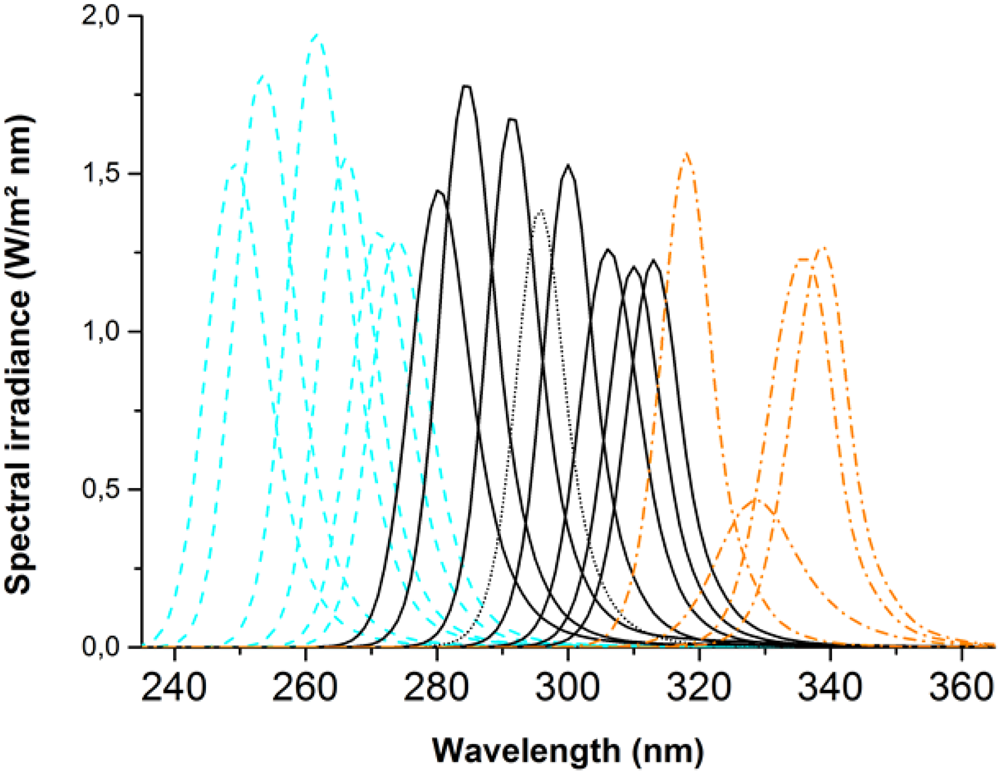

Figure 5
From: UV light assisted antibiotics for eradication of in vitro biofilms
Spectral irradiance of UV LEDs used for determination of the optimal biofilm eradication wavelength. The UVC diodes are indicated with cyan color and dash line. The UVB diodes are indicated by black line, and black short dash for the optimal diode, central wavelength at 296 nm. UVA diodes are indicated by orange dash dot line.
