Figure 1

From: Vimentin deficiency in macrophages induces increased oxidative stress and vascular inflammation but attenuates atherosclerosis in mice

Figure 1

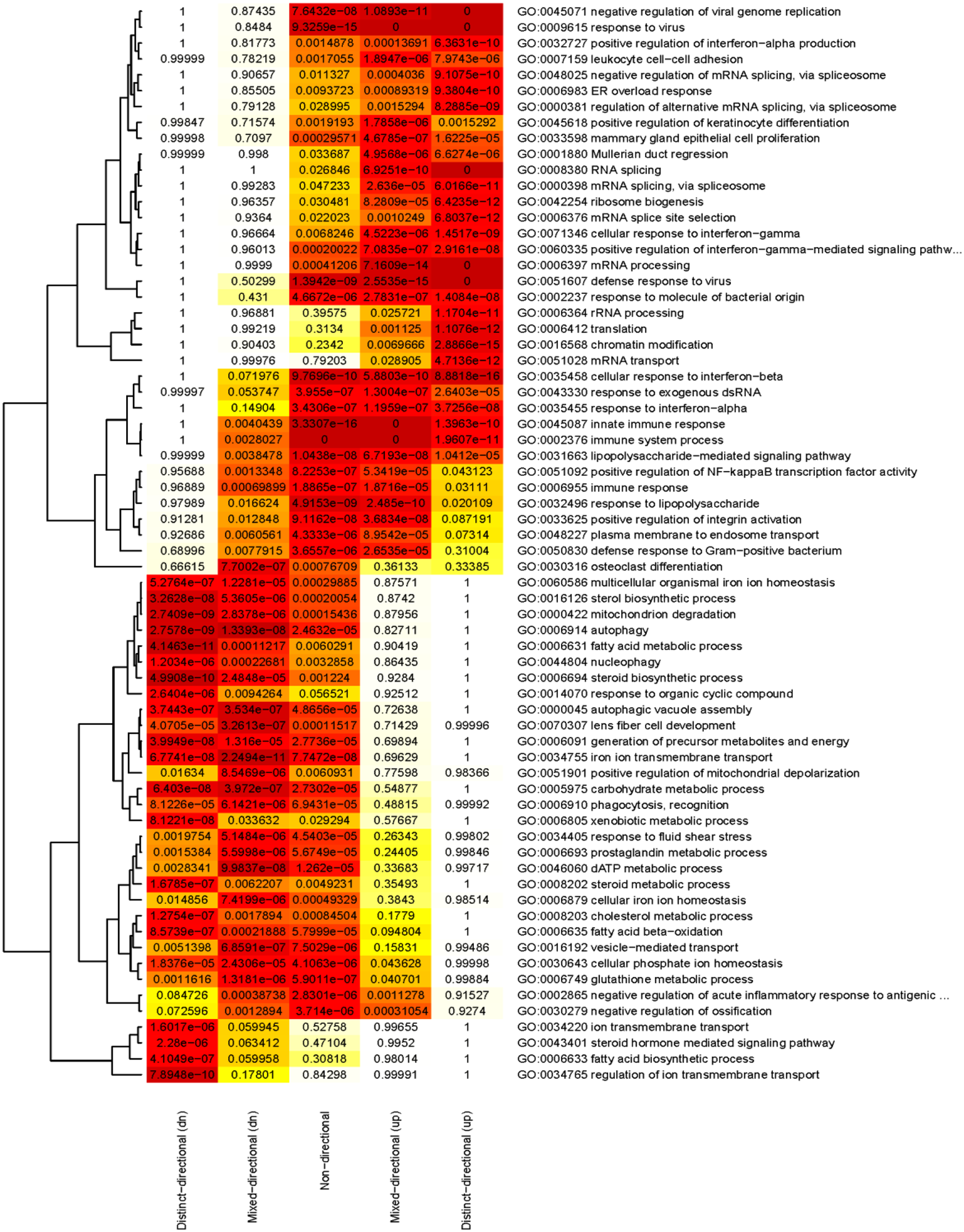

Heatmap shows the significantly changed gene sets and their association to up and downregulated genes based on gene expression data from Vim−/− and wild-type macrophages. Gene sets clustered at the upper part of the figure show patterns of mostly upregulated genes whereas the genes sets in the lower part show patterns of mostly downregulated genes. −Log (p values) are used for color coding.
