Figure 1

From: High energy oxidation and organosolv solubilization for high yield isolation of cellulose nanocrystals (CNC) from Eucalyptus hardwood

Figure 1

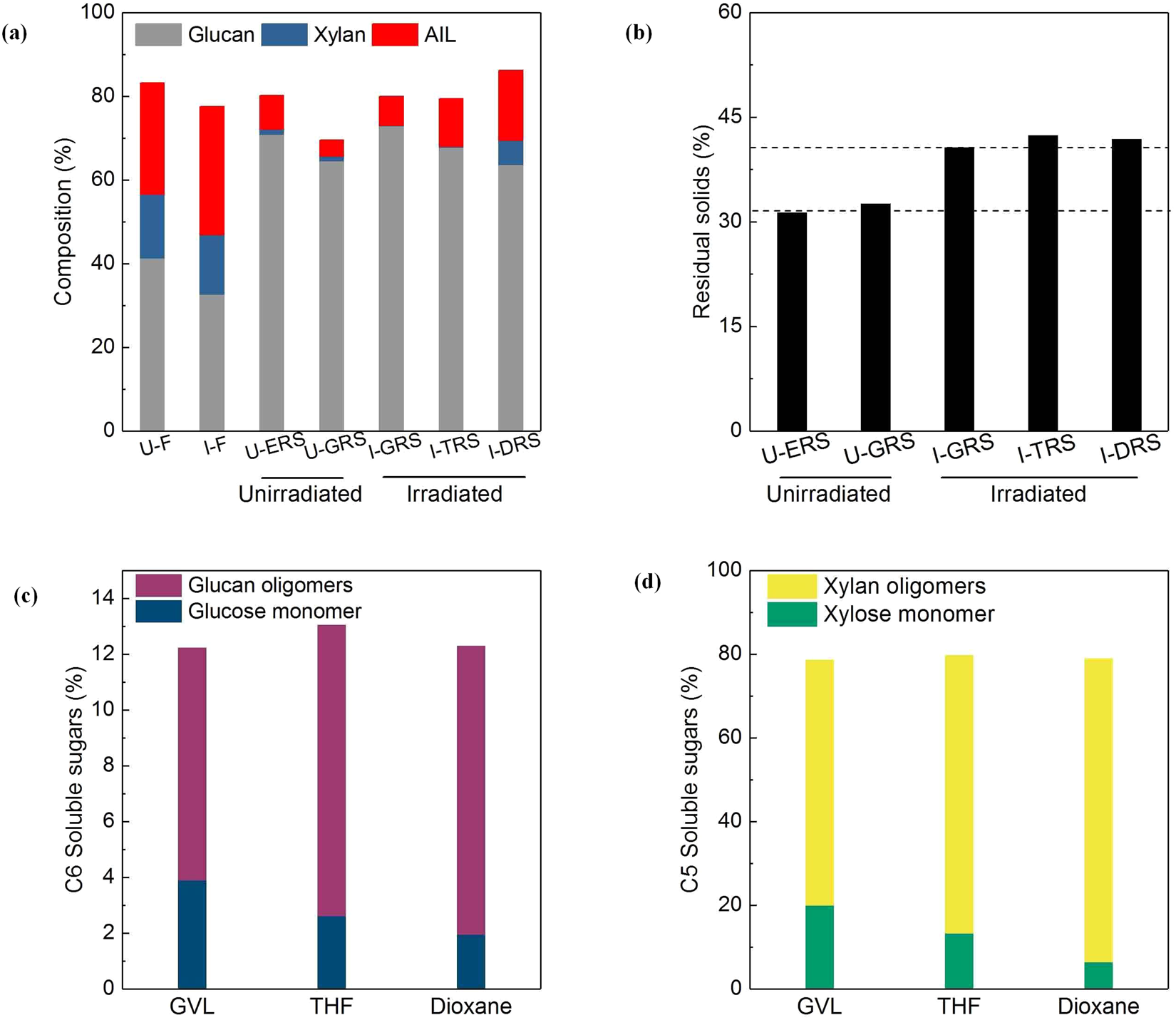

The effect of solubilization systems on chemical composition of the lignicollulose and soluble sugars in eluent. (a) The effect of irradiation pretreatment with or without organosolv solubilization; (b) The yield of residue solid after organosolv solubilization; (c) C6 concentration in organosolv system; (d) C5 concentration in organosolv system. U-F means untreated feedstock; I-F expresses irradiated feedstock.
