Figure 10

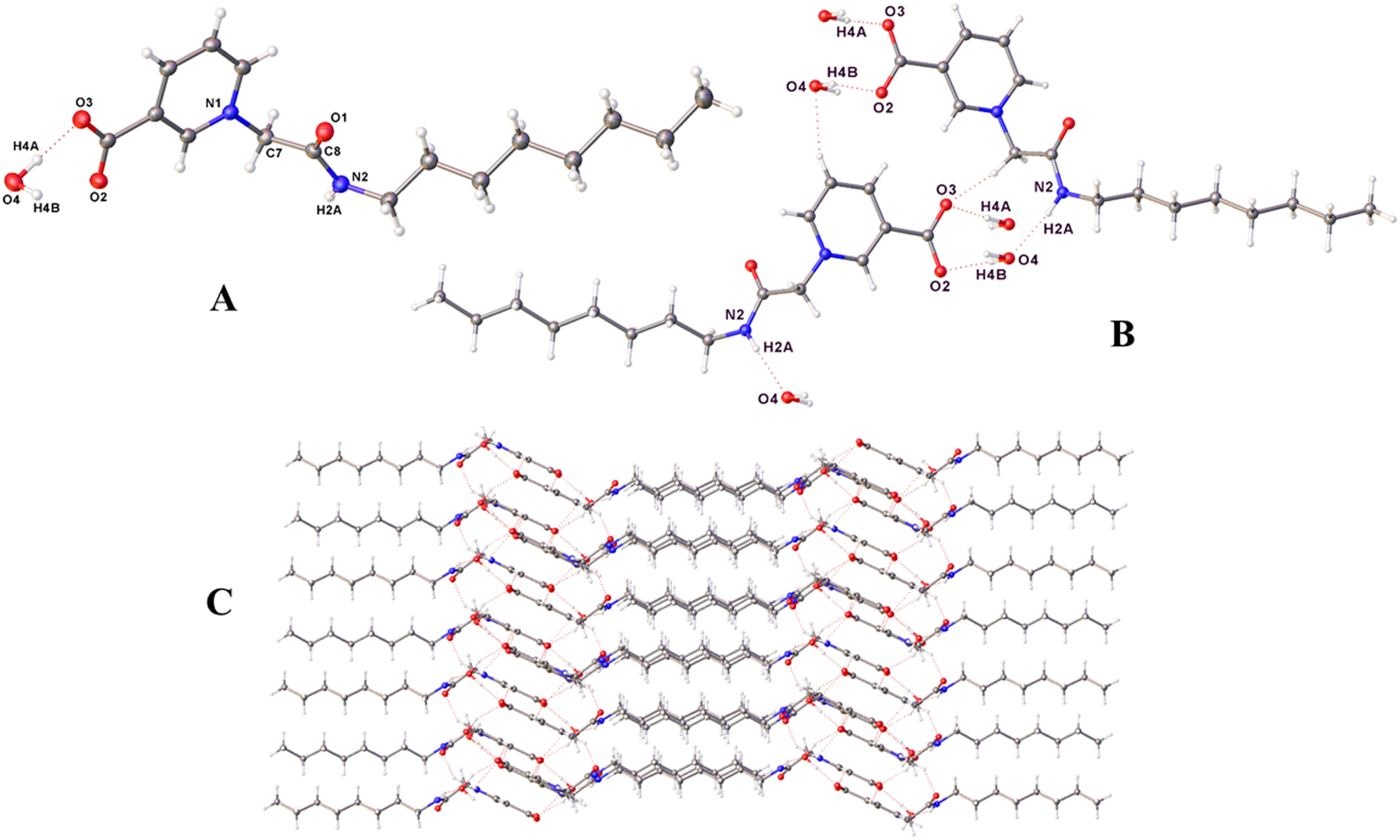

The crystal structure of 3a with ellipsoids represented at 30% probability. (A) The asymmetric unit, comprising one zwitterion and one molecule of water. (B) Hydrogen bonding interactions. (C) Hydrogen-bonded sheets in the gross structure.
