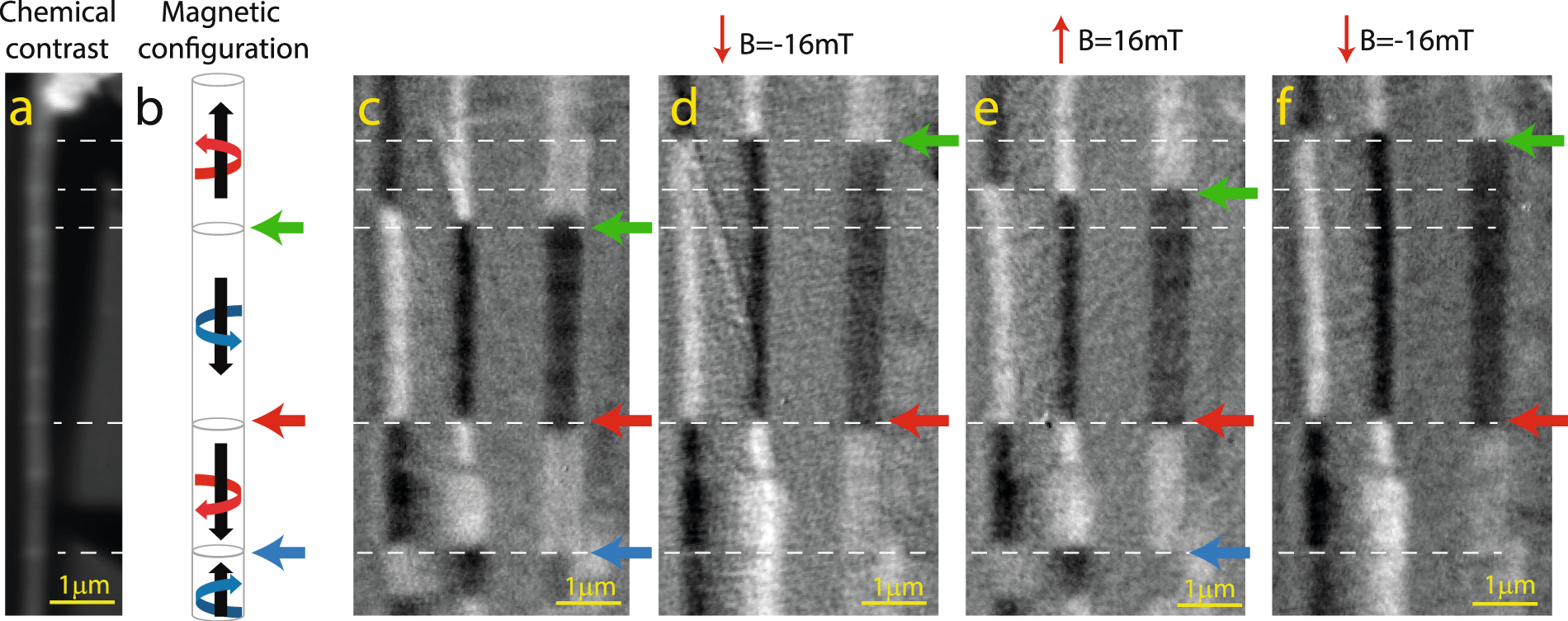

Figure 4
(a) Chemical contrast image for a wire with chemical notches separated by 800 nm. (b) Magnetic configuration of the nanowire. XMCD image at FeL3 edge for the same wire before (c) and after applying a magnetic field sequence of (d) −16 mT, (e) +16 mT and (f) −16 mT.
