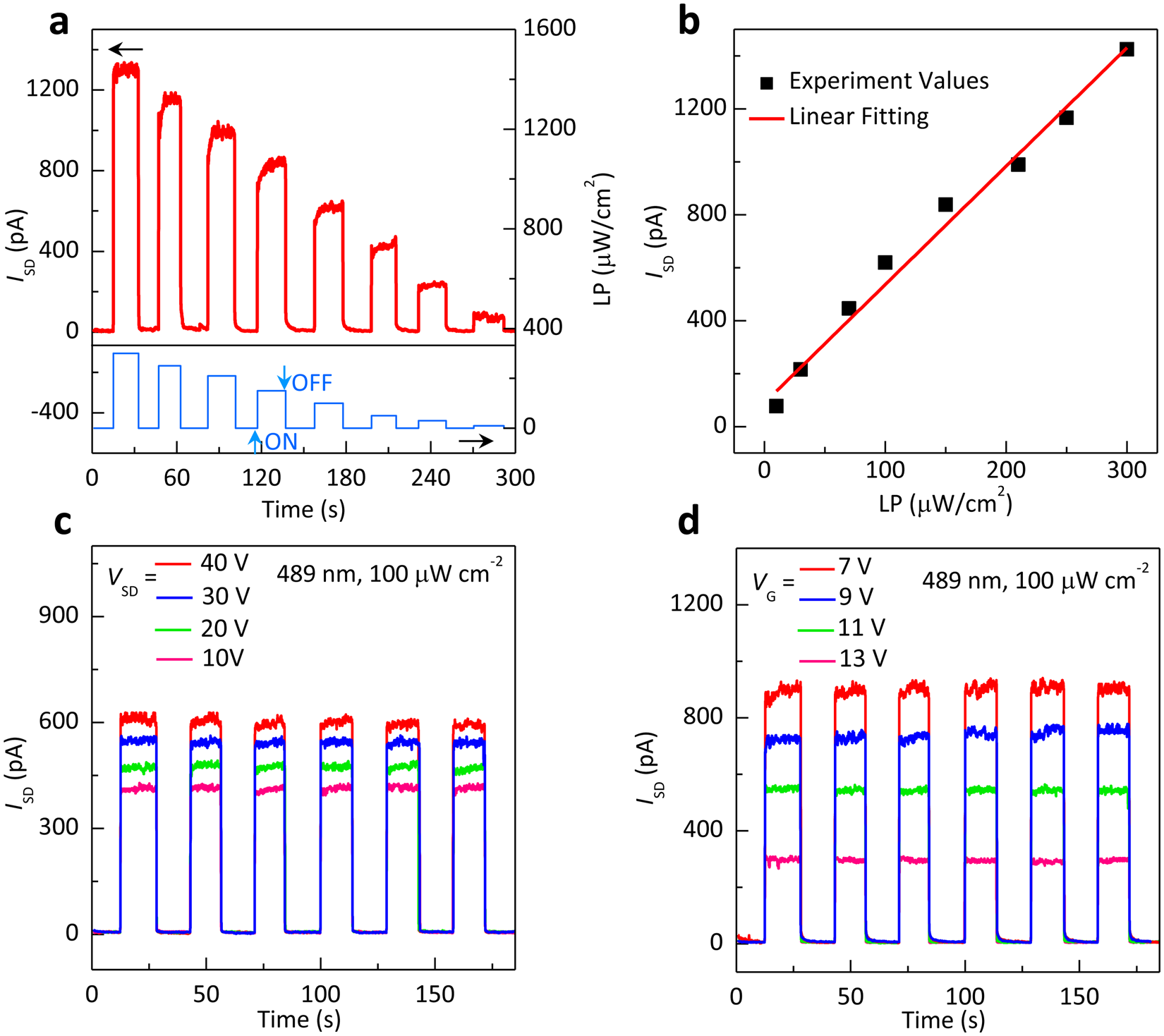

Figure 4
From: Ultrathin Air-Stable n-Type Organic Phototransistor Array for Conformal Optoelectronics
Dynamic photoresponse behavior of the PTCDI-C13H27 thin-film phototransistor. (a) Dynamic photoresponse under different irradiation (10, 30, 50, 100, 150, 210, 250, 300 μW cm−2) at fixed VG = 9 V. (b) Light power density dependence of the photocurrent. (c) Dynamic photoresponse behavior of PTCDI-C13H27 OPT with different VG at fixed VSD = 30 V under the irradiation of 100 μW cm−2. (d) Dynamic photocurrent response of PTCDI-C13H27 OPT with different VSD at VG = 9 V.
