Figure 6

From: AP endonuclease EXO-3 deficiency causes developmental delay and abnormal vulval organogenesis, Pvl, through DNA glycosylase-initiated checkpoint activation in Caenorhabditis elegans

Figure 6

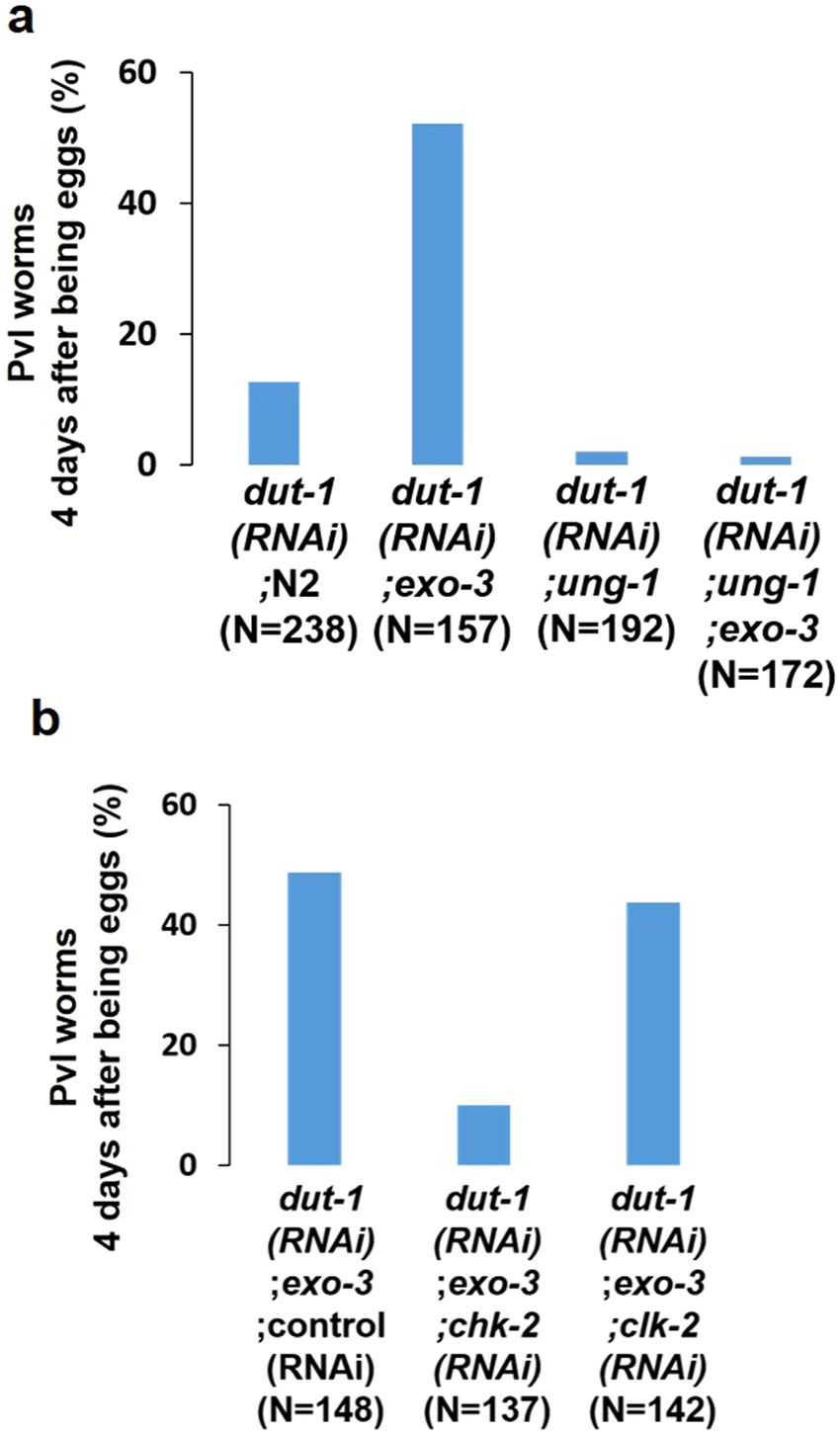

Effects of DNA glycosylase deficiency and lack of checkpoint kinases on dut-1 (RNAi)-induced Pvl in exo-3 (tm4374) mutant worms. Proportion of Pvl worms 4 days after development from eggs. The values indicate the number of Pvl worms/the number of adult worms. (a) Effects of ung-1 (tm2862) mutation. (b) Effects of chk-2 (RNAi) and clk-2 (RNAi).
