Figure 5

From: A two-miRNA signature (miR-33a-5p and miR-128-3p) in whole blood as potential biomarker for early diagnosis of lung cancer

Figure 5

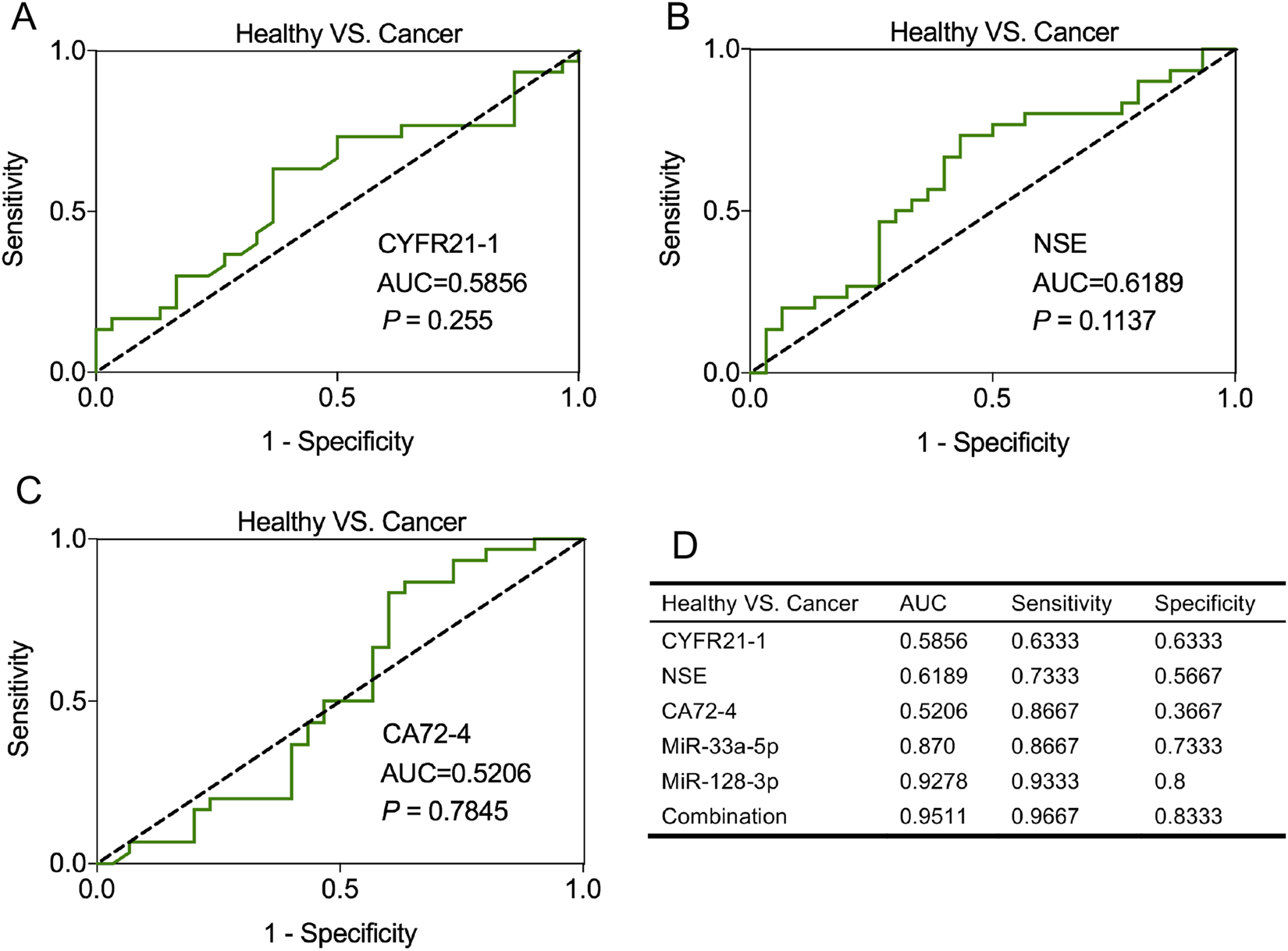

Diagnostic performance of miR-33a-5p/miR-128-3p and three traditional tumor markers for detection of lung cancer. The ROC analysis for detection of lung cancer using traditional tumor markers CYFR21-1 (A), NSE (B) and CA72-4 (C). (D) The comparison of diagnosis values between miR-33a-5p/miR-128-3p and the combination and three traditional tumor markers.
