Figure 3
From: The prevalence and transcriptional activity of the mucosal microbiota of ulcerative colitis patients

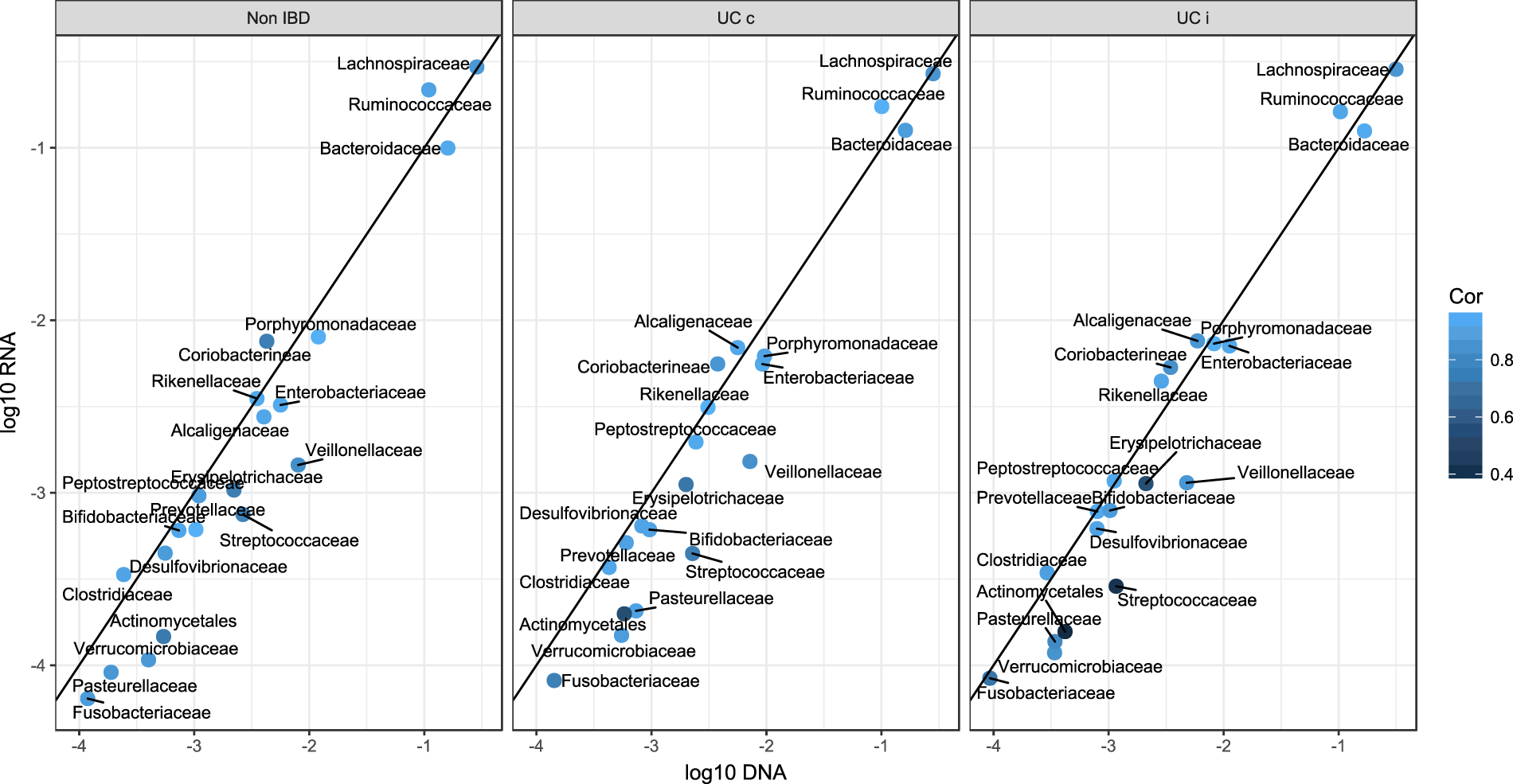

Average log transformed abundances of bacterial families in the total and active microbiota. The diagonal line indicates identical abundances in the DNA and RNA datasets. The colour intensity shows how much the abundance of the bacterial families correlate.
