Figure 6
From: Quenched Stochastic Optical Reconstruction Microscopy (qSTORM) with Graphene Oxide

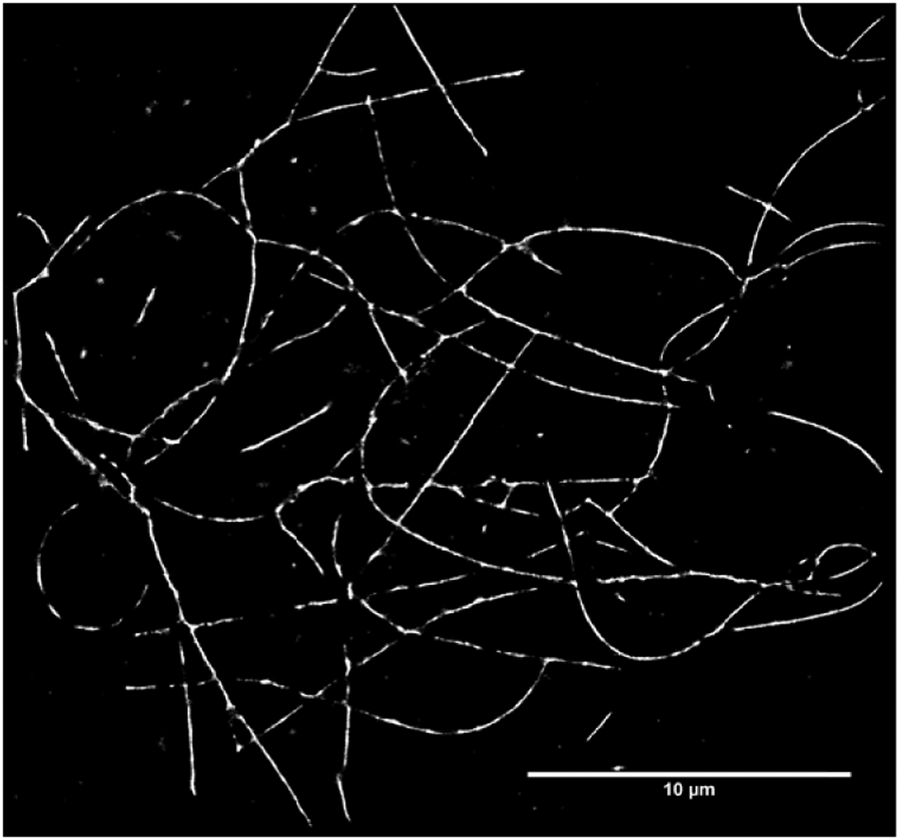

A reconstructed STORM image of I3K peptide fibres is shown. A graphene oxide film of 5 nm thickness was used (compared with the single GO flake shown in Fig. 5) and a significant improvement in resolution was observed according to the FOI metric.
