Figure 2
From: A standardized herbal extract PM014 ameliorates pulmonary fibrosis by suppressing the TGF-β1 pathway

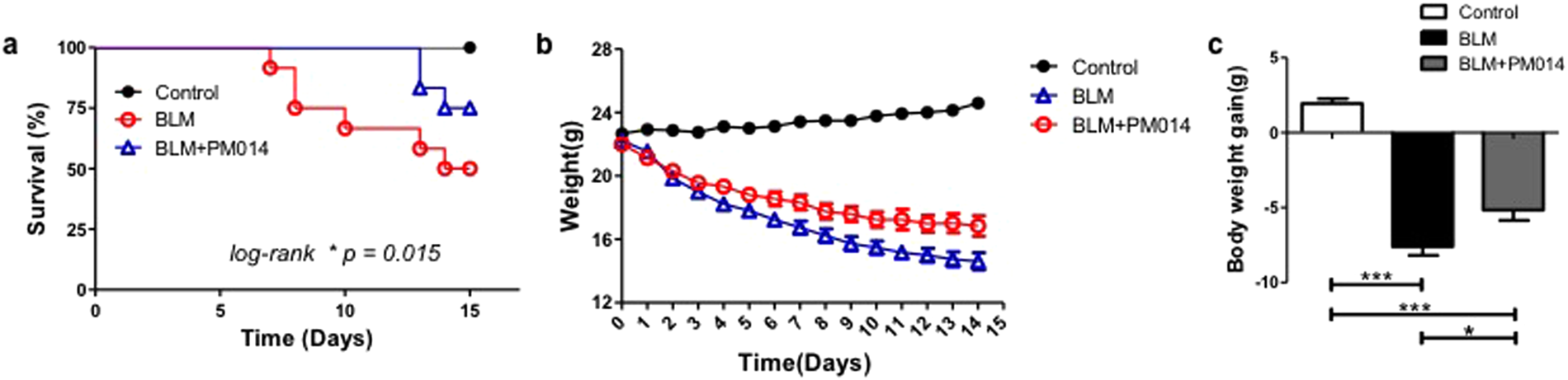

PM014 improves survival rate and ameliorates weight loss after BLM instillation. Mice were treated with BLM (5 mg/kg) intratracheally on day 0. PM014 (200 mg/kg) was administrated orally once a day, beginning on day 2 until day 13 after BLM treatment. (a) Survival curve was shown. Data was represented as percentage of survival at each time point. Log-rank test, *P = 0.015, n = 12 for each experimental group. (b,c) (b) Body weight was measured every day. (c) Body weight gain over 15 days was calculated. n = 15 for each experimental group, *P < 0.05; ***P < 0.001, Data are presented as mean ± SE.
