Figure 6

From: Observing the devastating coffee berry borer (Hypothenemus hampei) inside the coffee berry using micro-computed tomography

Figure 6

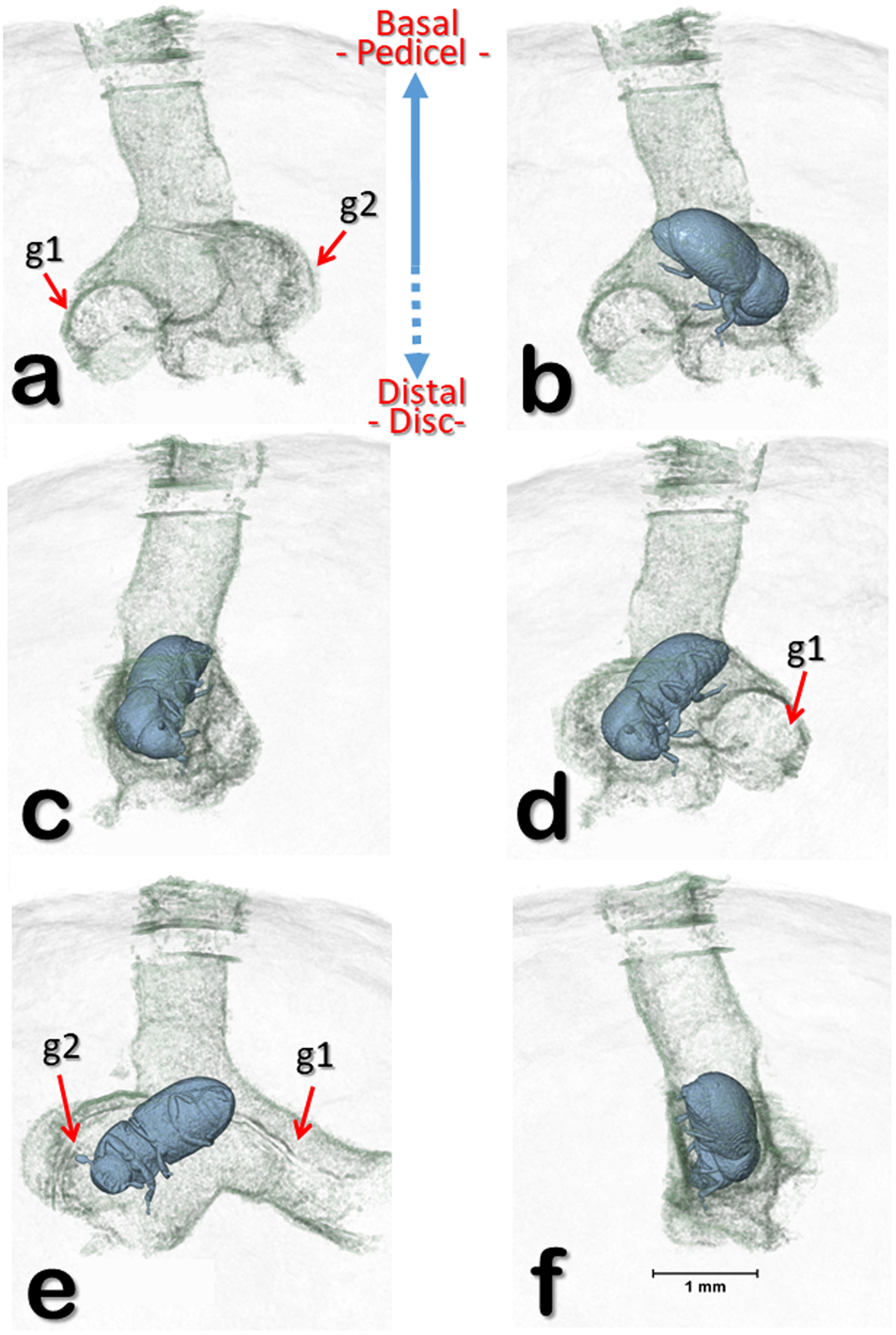

Volume rendered image reconstructions of the entrance hole and bifurcating galleries (berry 1) at different rotation angles (a–f). The insect has been digitally removed to show the bifurcating galleries (a). The eggs and galleries shown in Figs 1–3 have been digitally removed to focus on the area at the end of the entrance hole. Abbreviations: g1 = 1st gallery; g2 = 2nd gallery.
