Figure 3
From: Multimodal assessments of Zika virus immune pathophysiological responses in marmosets

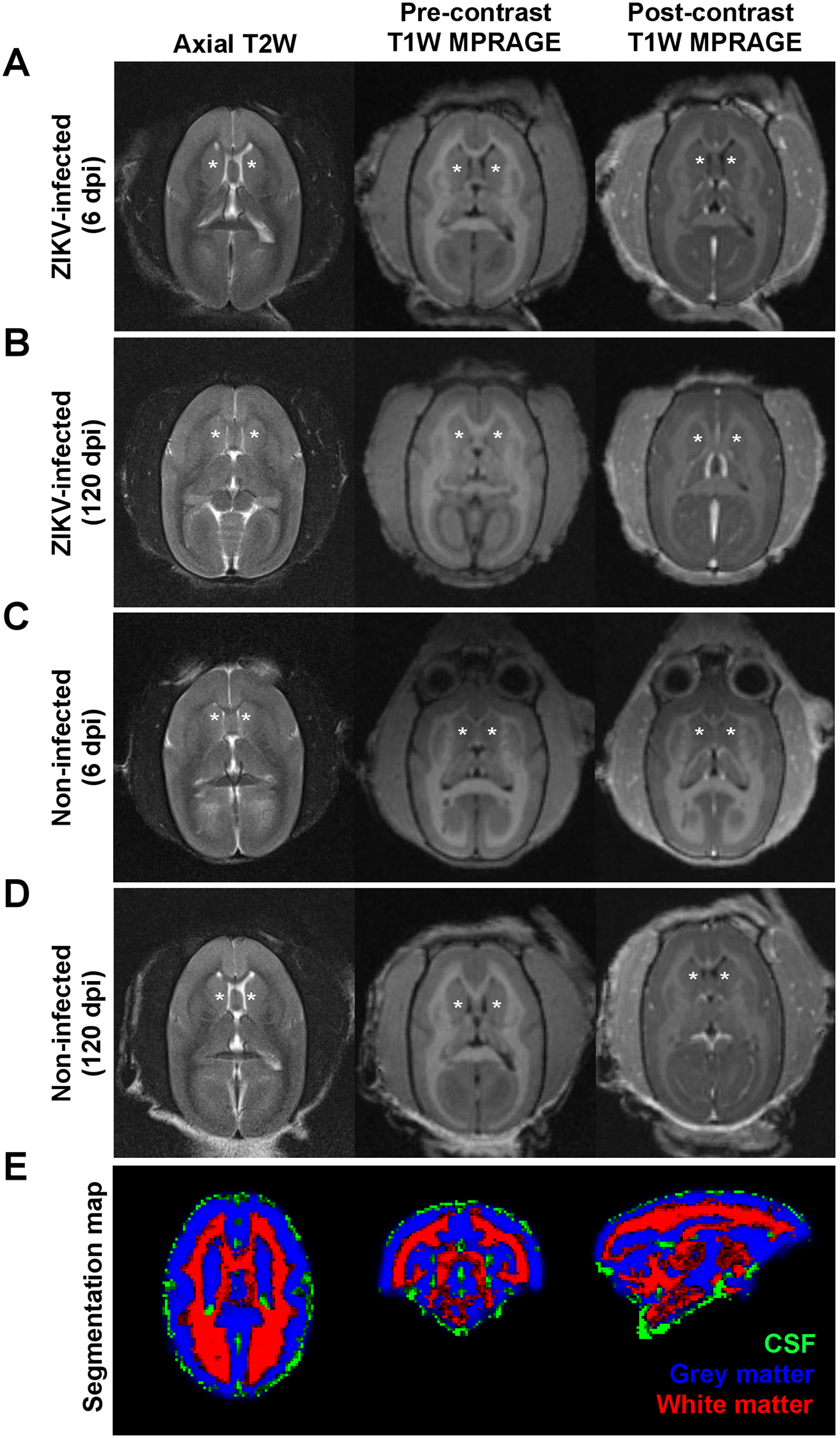

MRI brain images. (A–D) From left to right columns, axial T2-weighted fast spin-echo, pre- and post-contrast T1-weighted MPRAGE images of the marmoset brain at the level of the basal ganglia with asterisk (*) denoting the caudate nucleus. These represent (A,B) ZIKV-infected or (C,D) non-infected marmosets obtained at (A,C) 6 or (B,D) 120 dpi. No focal abnormality or pathological enhancement is seen in the ZIKV-infected brain. (E) Segmentation map of the marmoset brain for white, grey matter and cerebrospinal fluid (CSF).
