Figure 10
From: Non-contact Quantification of Jugular Venous Pulse Waveforms from Skin Displacements

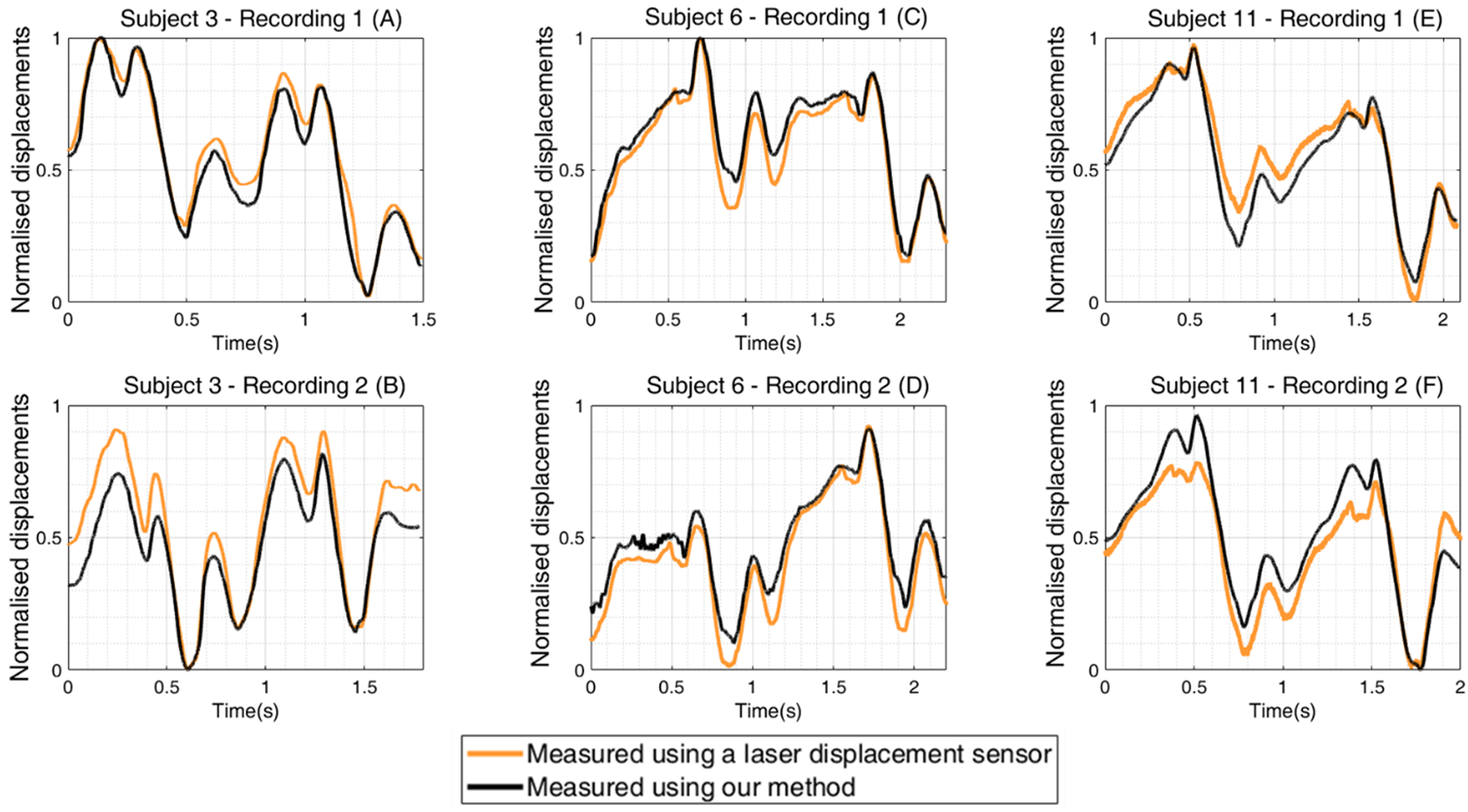

Normalised jugular vein displacement waveforms measured using our method (black lines) and using a laser displacement sensor (orange lines) derived from two recordings in each of three subjects. The correlation scores between the associated pairs of recordings in panels A to F were 0.98, 0.97, 0.96, 0.99, 0.96, and 0.95, respectively.
