Figure 11
From: Non-contact Quantification of Jugular Venous Pulse Waveforms from Skin Displacements

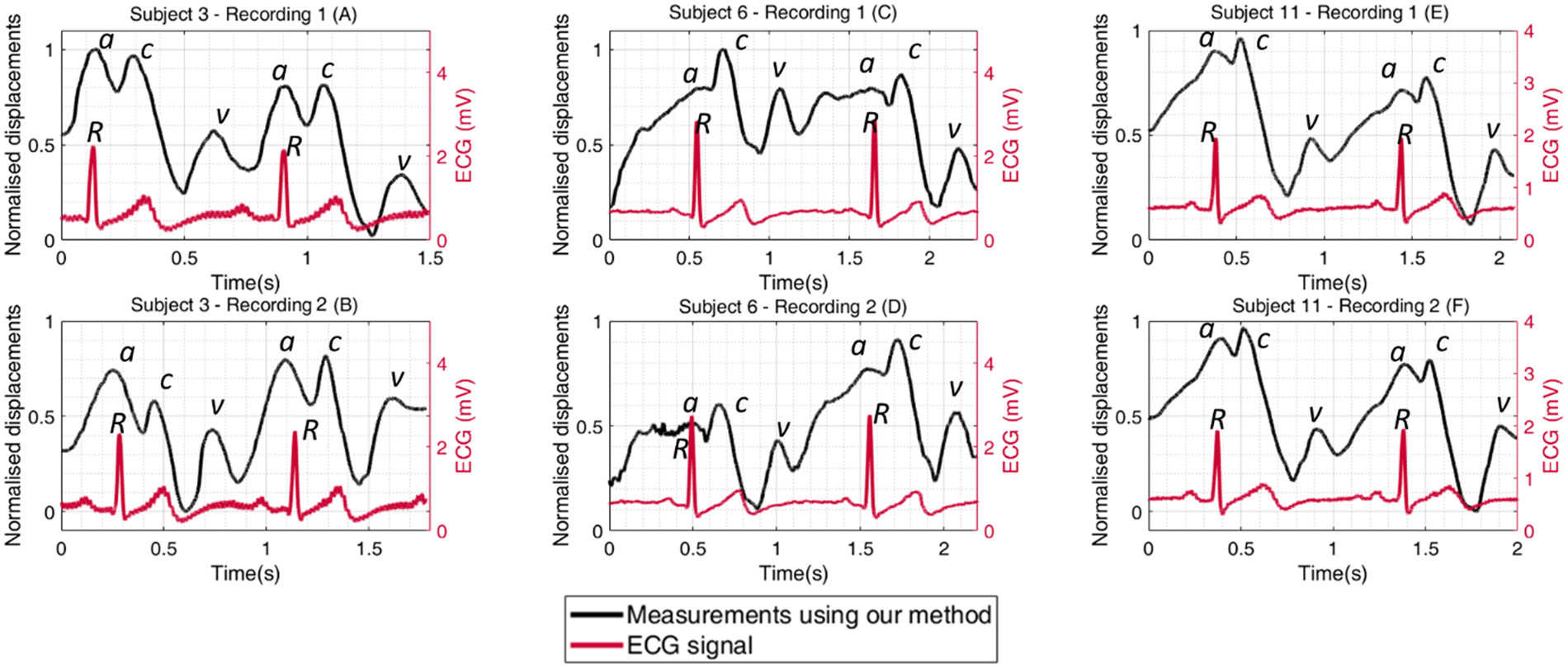

Normalised jugular vein displacement waveforms measured using our method, and synchronised with recorded ECG traces for two recordings in each of three subjects. The R peak of the ECG signal has happened close to the a peak of the JV waveform.
