Figure 3

From: Crack growth and energy dissipation in paper

Figure 3

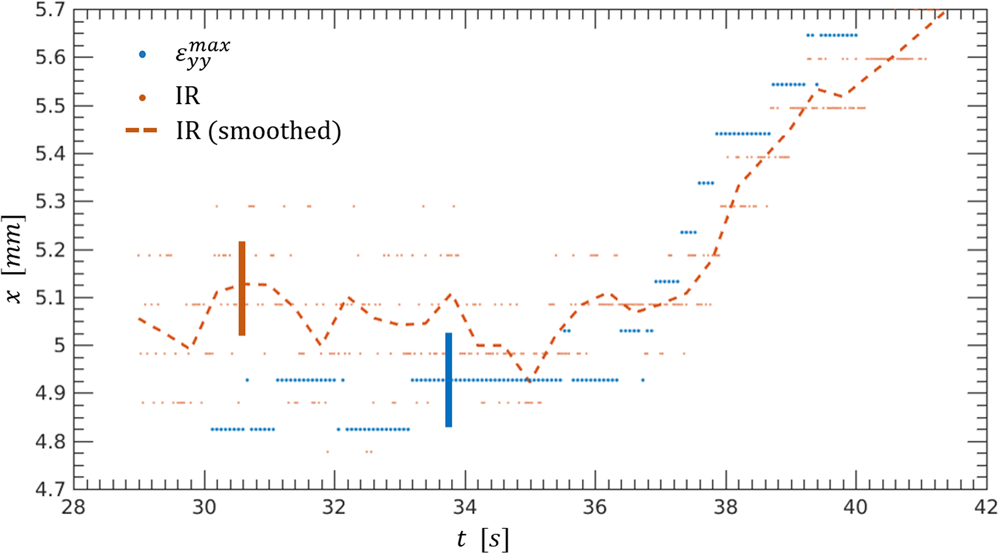

The x-coordinates of the hot spot, their running average and the position of the maximum strain show that the crack starts the stable propagation at t = 37 s. The thick vertical bars are the error bars corresponding to the discretization of the data which is the largest source of error.
