Figure 9
From: Radiopaque Fully Degradable Nanocomposites for Coronary Stents

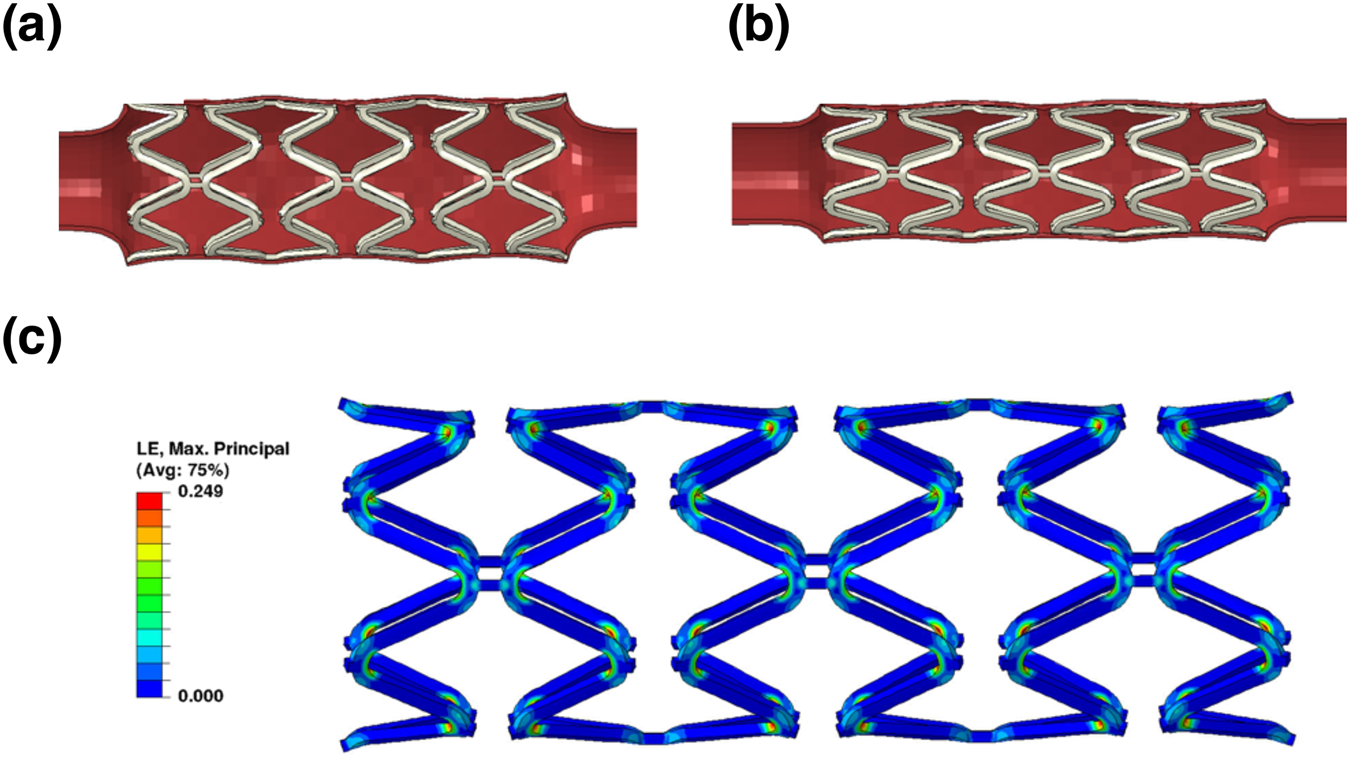

FEA of 15% SA-BaSO4/PLLA BRS with 100 μm strut thickness. (a) Expansion, (b) Scaffolding and (c) strain contour at maximum expansion of BRS with reduced strut thickness.
