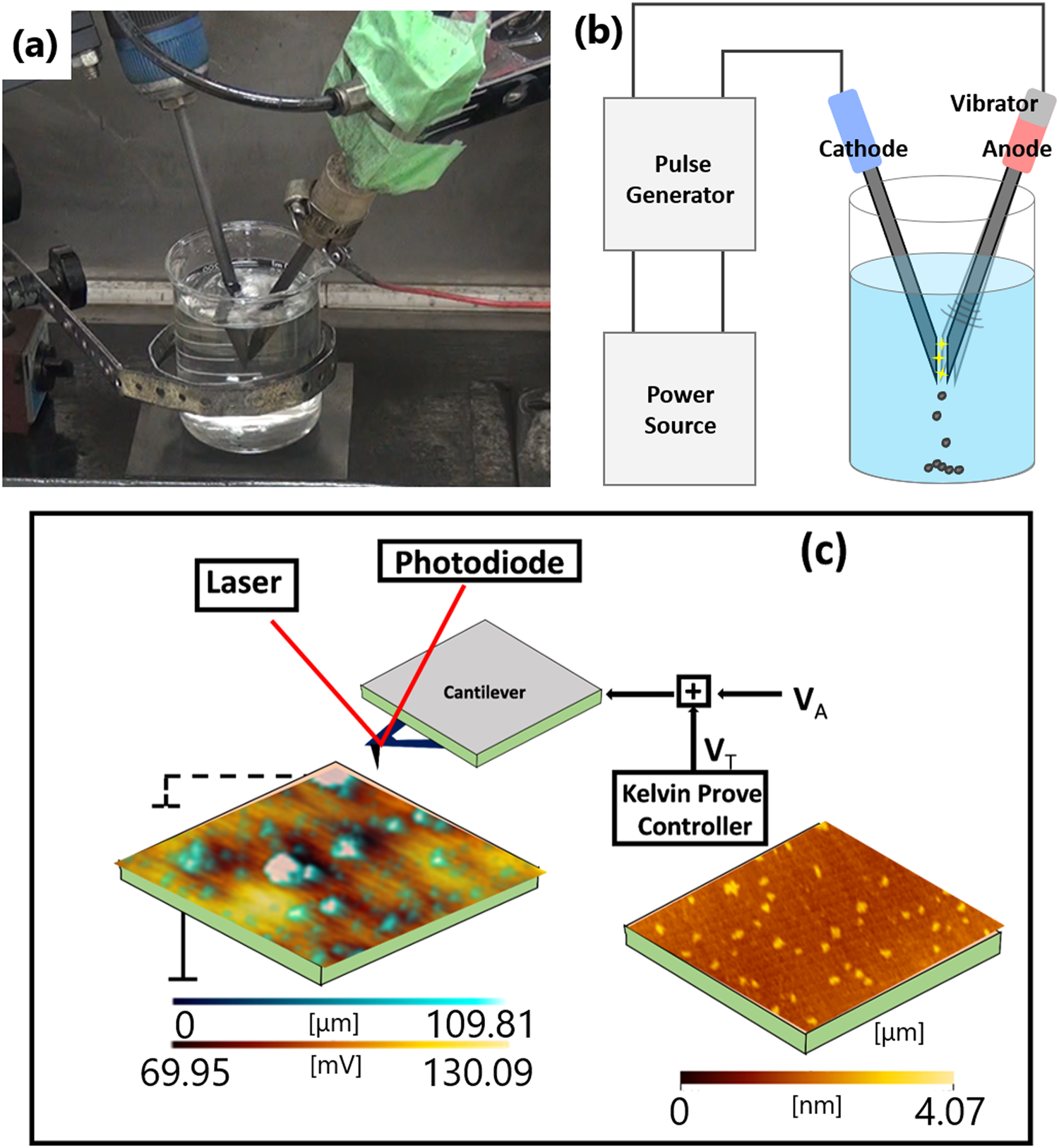

Photograph (a) and schematic (b) for the experimental setup of pulsed plasma treatment. Schematic illustration for the KPFM model used for investigating GG@CH2Cl2, GG@CHCl3 and GG@CCl4. VT presents the recorded contact potential. Brighter region indicates higher recorded contact potential difference. A lower VT represents a higher work function.
