From: Physiological and proteomic analysis on long-term drought resistance of cassava (Manihot esculenta Crantz)

Figure 2

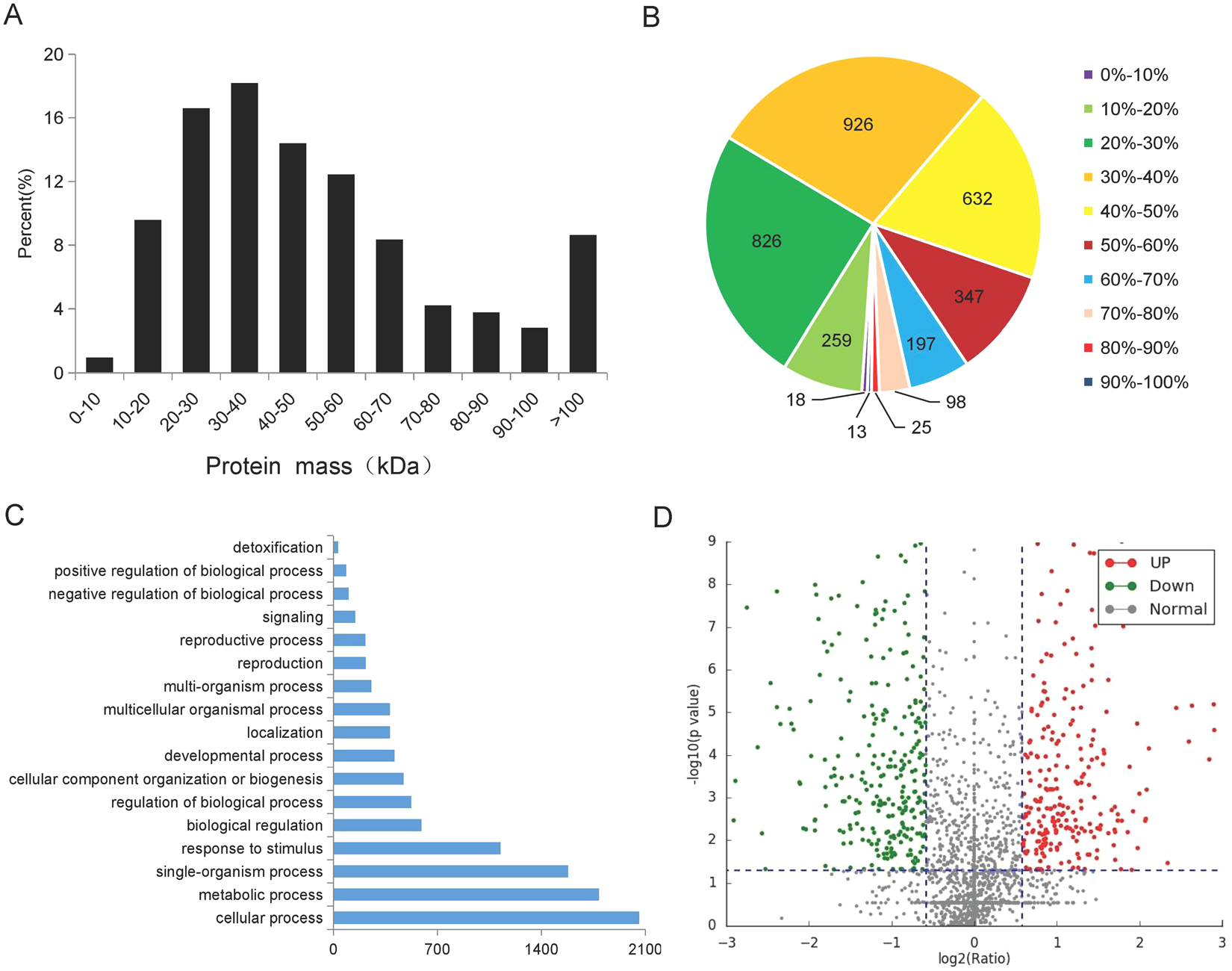

General information of the identified proteins. (A) The distribution of protein mass; (B) The distribution of the sequences coverage of the identified proteins; (C) Biological processes of the identified proteins; (D) The distribution of the relative expression of the quantified protein. The green and the red dots mean down-regulated and up-regulated differentially expressed proteins, respectively. The gray dots mean normal proteins.
