Figure 6

From: Adaptive hindlimb split-belt treadmill walking in rats by controlling basic muscle activation patterns via phase resetting

Figure 6

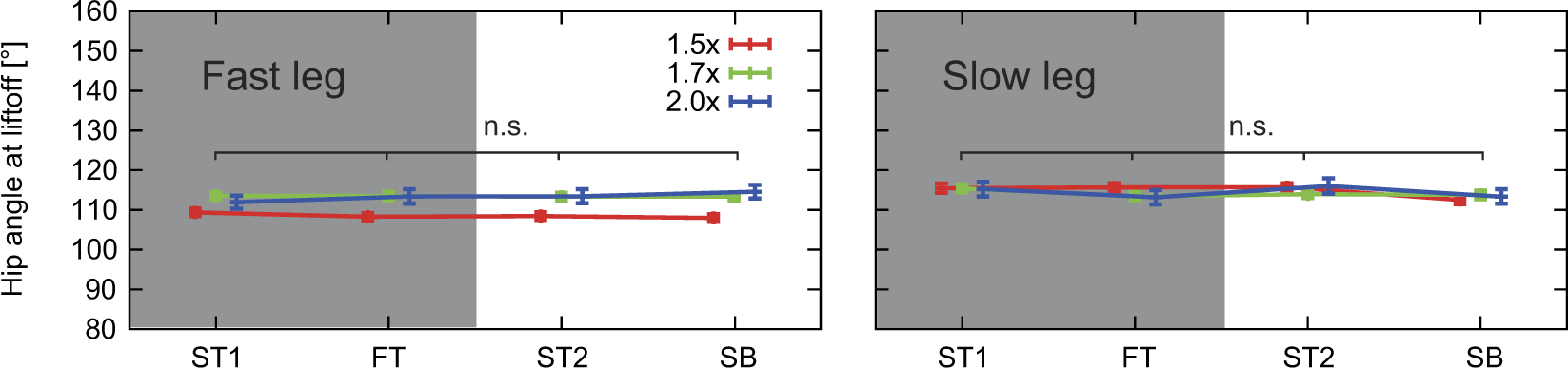

Comparison of hip joint angles at liftoff. Hip joint angles at liftoff of the fast and slow legs during the slow-tied configuration (ST), fast-tied configuration (FT), and split-belt configuration (SB) in each belt speed condition (1.5x, 1.7x, and 2.0x) in the measurements of rats. Data points and error bars are the average and standard error values between animals in each belt speed condition. One-way repeated measures analysis of variance (ANOVA) did not show significant differences among the four testing periods.
