Figure 4 | Scientific Reports

Figure 4

From: Convergent evolution of an extreme dietary specialisation, the olfactory system of worm-eating rodents

Figure 4

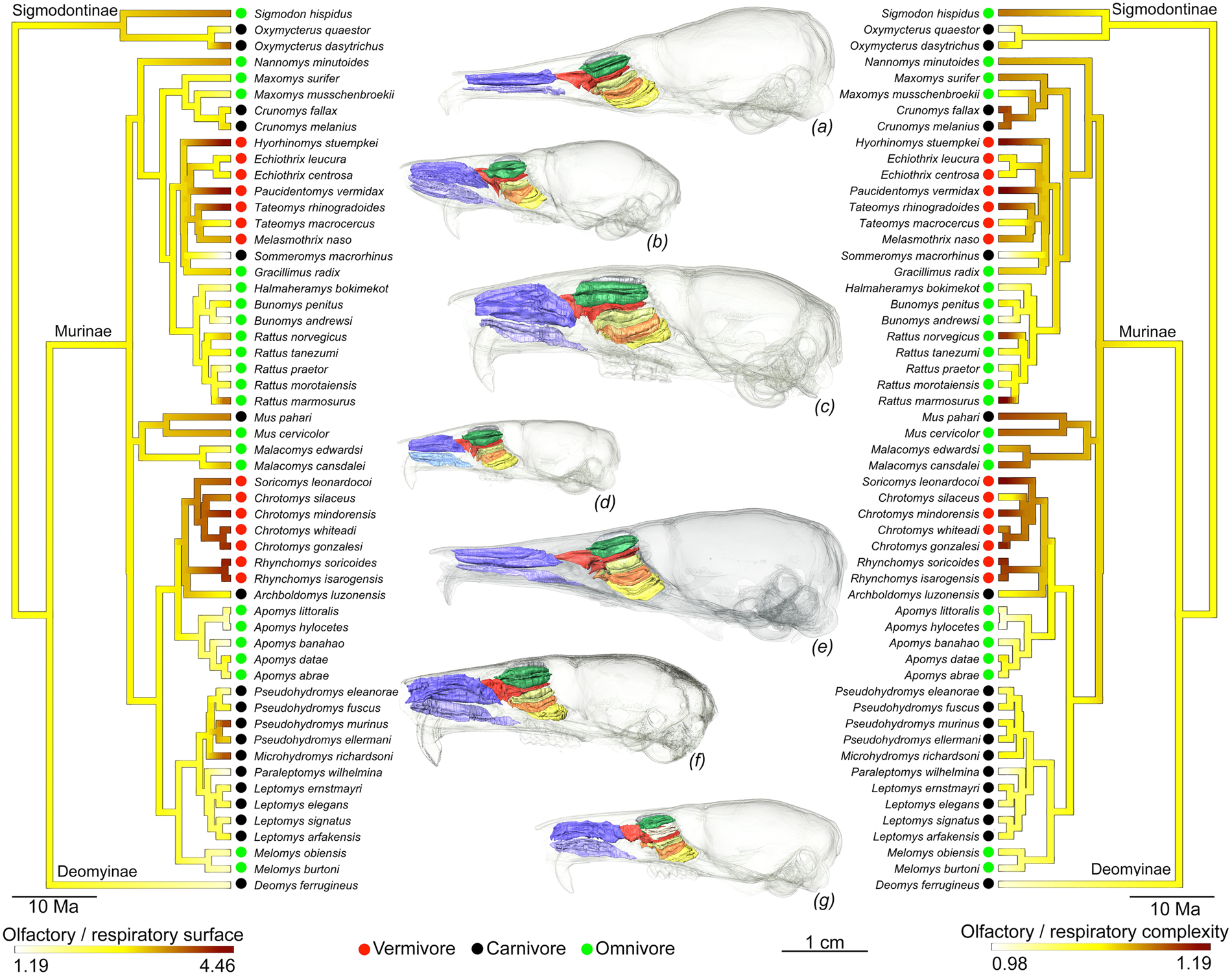

Continuous mapping of the ratio between olfactory and respiratory turbinal surface area (left) and of the ratio between olfactory and respiratory turbinal 3D complexity (CHAR, right) with phylogenetic relationships. (a) Paucidentomys vermidax, (b) Sommeromys macrorhinos, (c) Bunomys penitus, (d) Mus pahari, (e) Rhynchomys soricoides, (f) Apomys banahao, and (g) Deomys ferrugineus.
