Figure 7

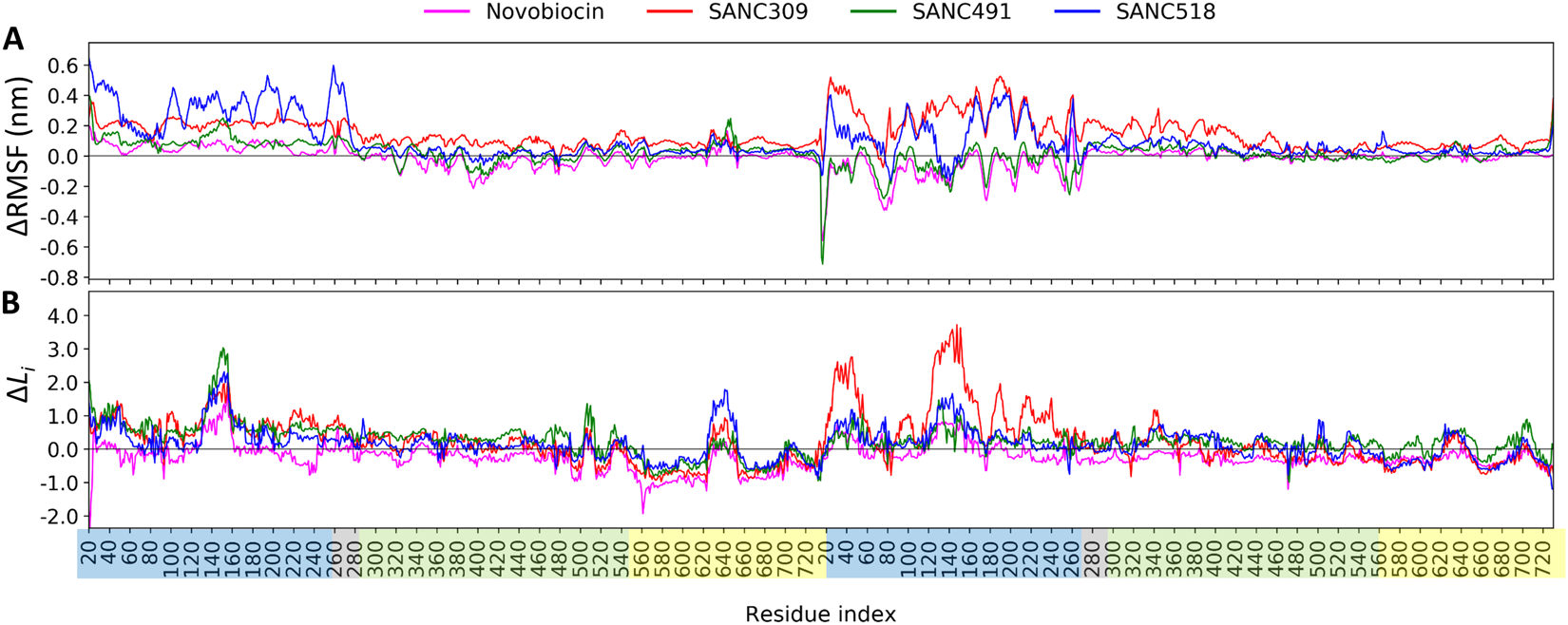

Effect of CTD bound ligands on internal dynamics: (A) ∆RMSF, and (B) ΔLi plots for each ligand bound complex, calculated as the average difference between the protein-ligand and ligand-free complexes for each residue. Residue indices are coloured by domain: NTD – blue, M-domain – green, CTD – yellow.
