Figure 2
From: F-doped TiO2 microporous coating on titanium with enhanced antibacterial and osteogenic activities

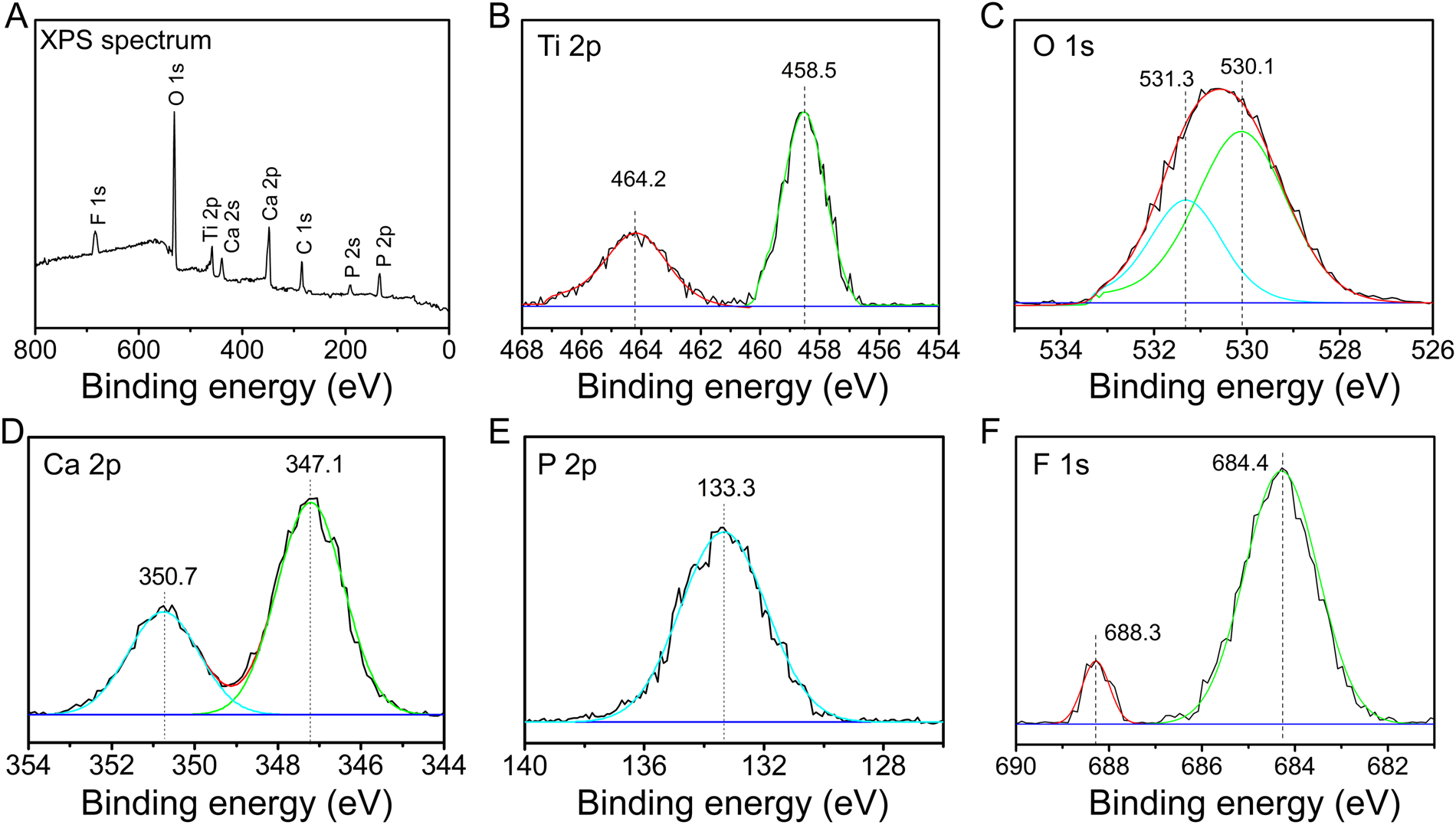

XPS spectrum (A) and high-resolution spectra of Ti2p (B), O1s (C), Ca2p (D), P2p (E), and F1s (F) detected from the surface of TiCP-F9.
