Figure 2
From: Seasonal Deposition and Lifting of Dust on Mars as Observed by the Curiosity Rover

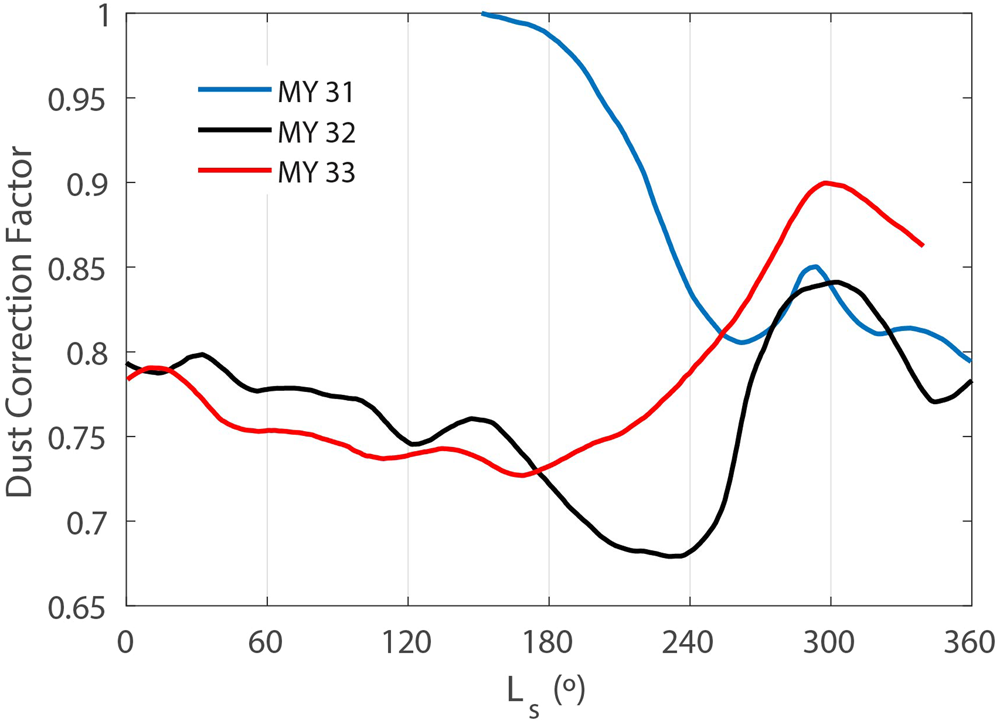

Temporal evolution of the Dust Correction Factor obtained for the UVE channel of the MSL REMS UV sensor during Martian Year 31 (blue), 32 (black) and 33 (red). Uncertainties (for clarity not included here; see methods) are shown in Supplementary Fig. S2. The mean value of the uncertainties is ± 0.025, with a maximum value of 0.052.
