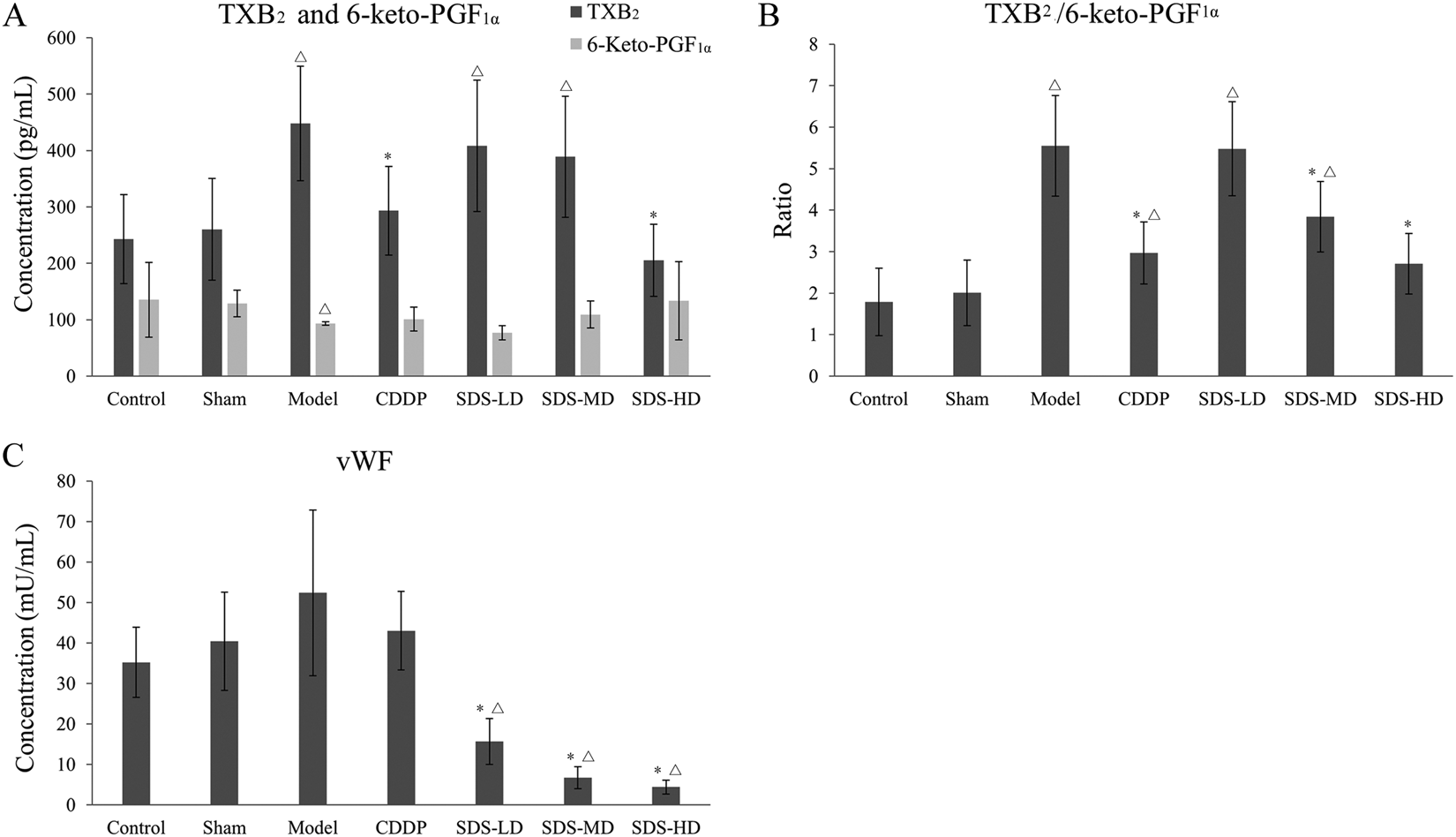

Figure 4
From: Antithrombotic effects and related mechanisms of Salvia deserta Schang root EtOAc extracts
Effects of SDS root ESF on FeCl3 induced rat plasma levels of TXB2 and 6-keto-PGF1α. (A) TXB2/6-keto-PGF1α ratio; (B) and vWF (C). Before the establishment of FeCl3-induced rat carotid artery thrombosis models, rats in each group were lavaged with different doses of SDS root EtOAc extract or CDDP for 20 days, once a day. n = 10; data are presented as the mean ± SD; *P < 0.05, significant difference compared to the model group; ΔP < 0.05 compared to the sham group.
