Figure 5
From: Magnetized plasma implosion in a snail target driven by a moderate-intensity laser pulse

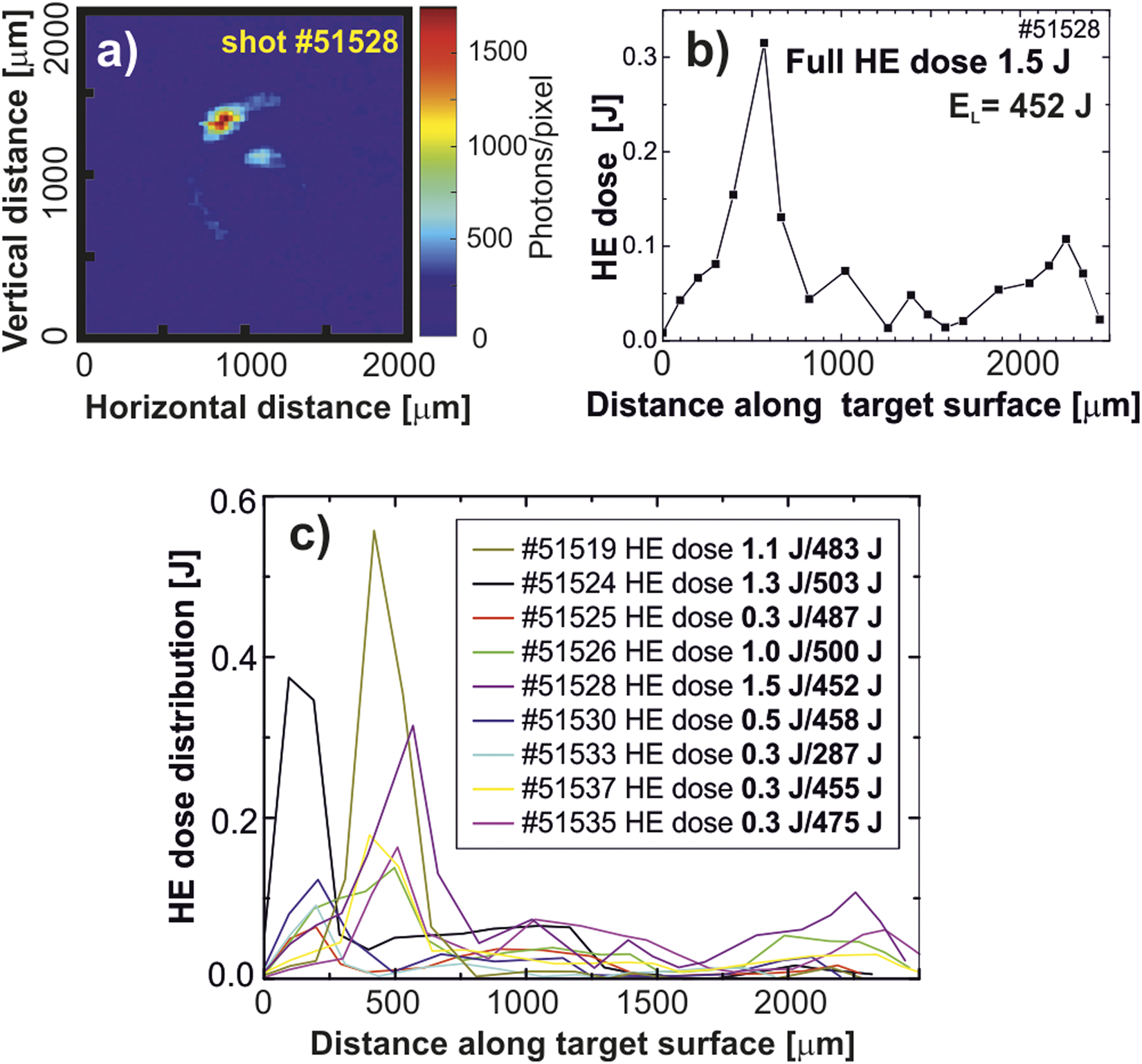

2D maps of the Cu Kα emission from the snail for the shot #51528 (panel a), the energy deposited by fast electrons along the internal surface of the snail in the shot #51528 (panel b), and the deposited energy variation in different shots (panel c).
