Figure 9
From: Magnetized plasma implosion in a snail target driven by a moderate-intensity laser pulse

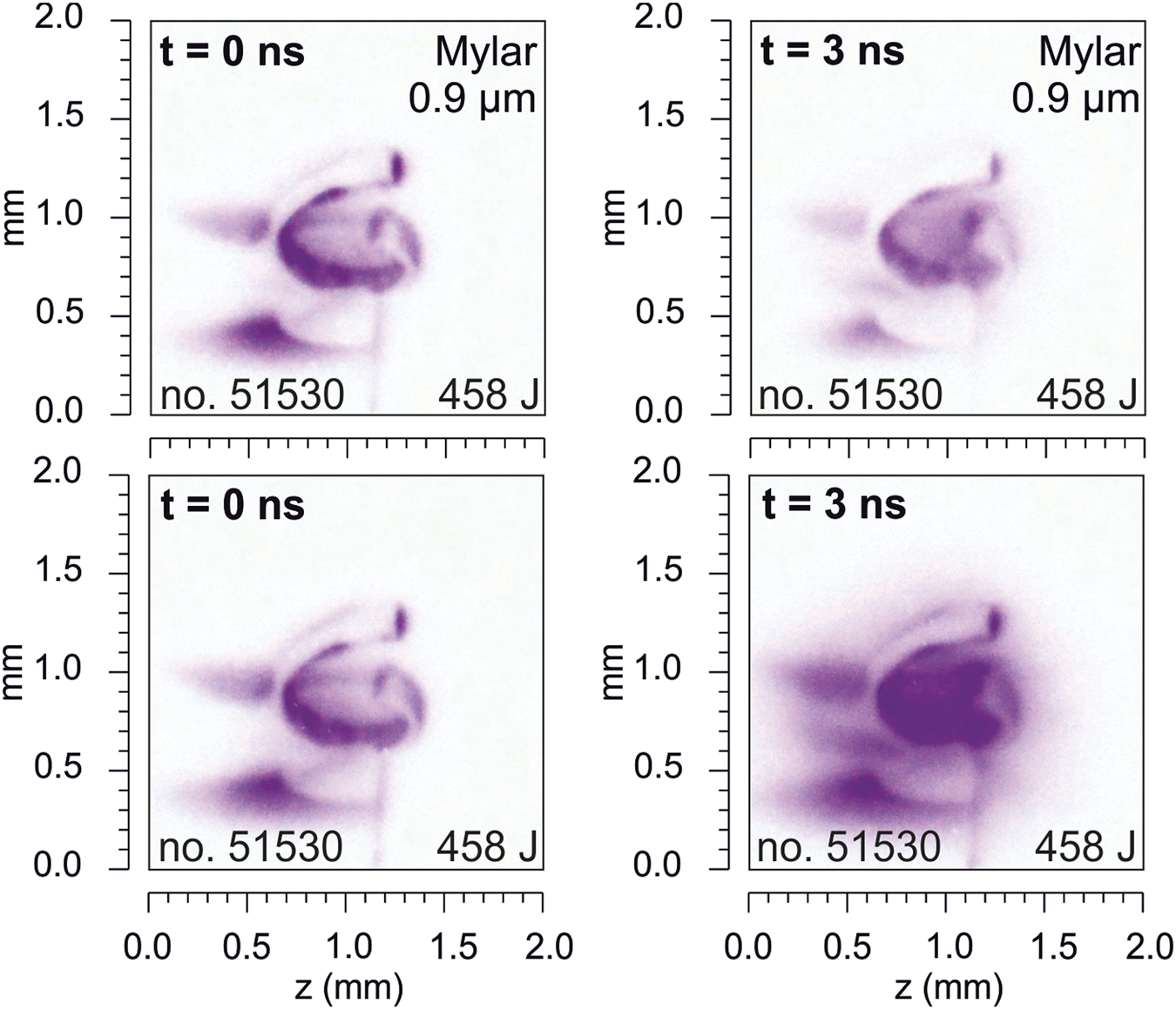

Gated soft x-ray images registered by the 4-frame pinhole camera which shows snail-shaped target self-emission at 0 and 3 ns with and without MYLAR filter.
