Figure 2

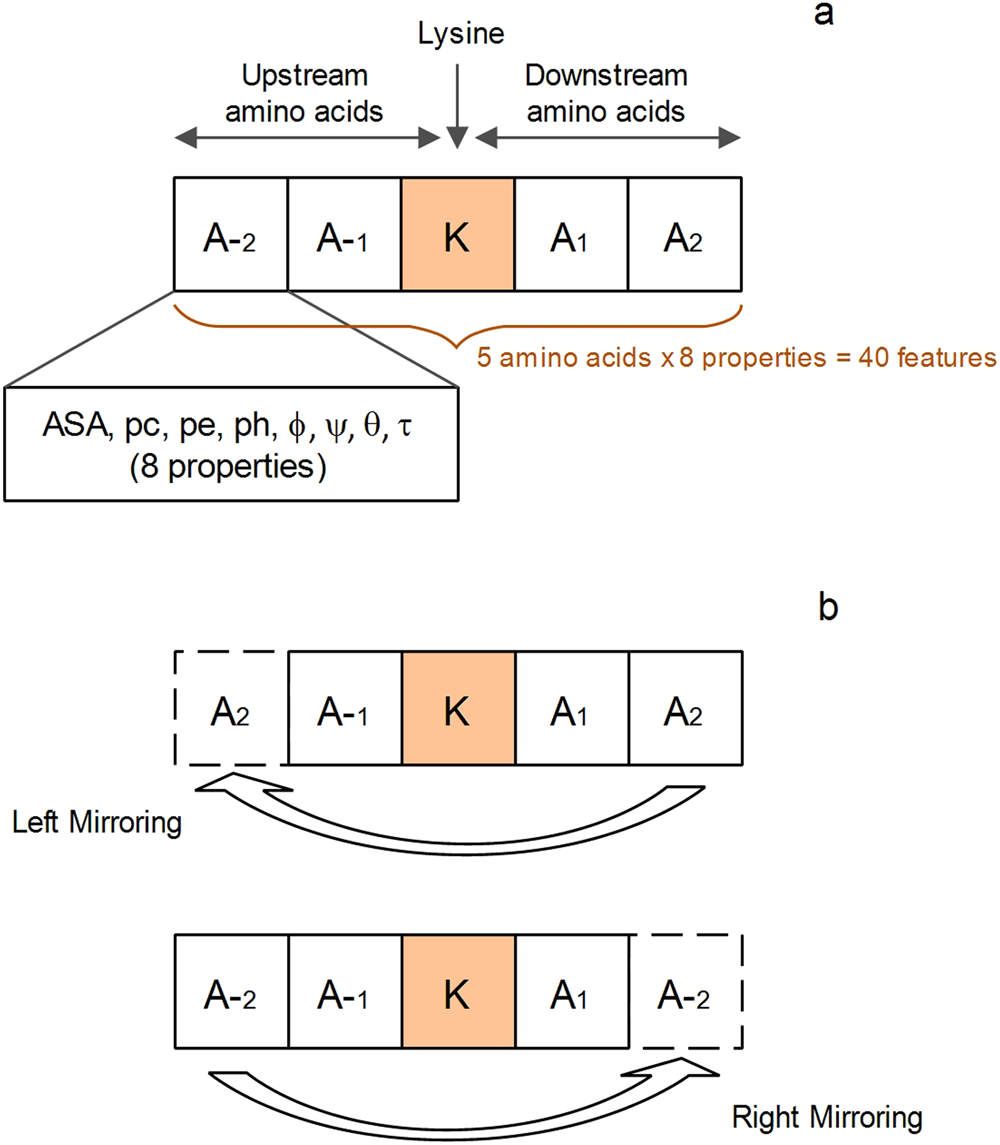

Illustration of the arrangement of neighboring amino acids to the lysine residue. (a) Lysine site with sufficient upstream and downstream amino acids. (b) Lysine site with inadequate amino acids. Left mirroring for inadequate upstream and right mirroring for insufficient downstream amino acids.
