From: Modulation of benzylisoquinoline alkaloid biosynthesis by overexpression berberine bridge enzyme in Macleaya cordata

Figure 1

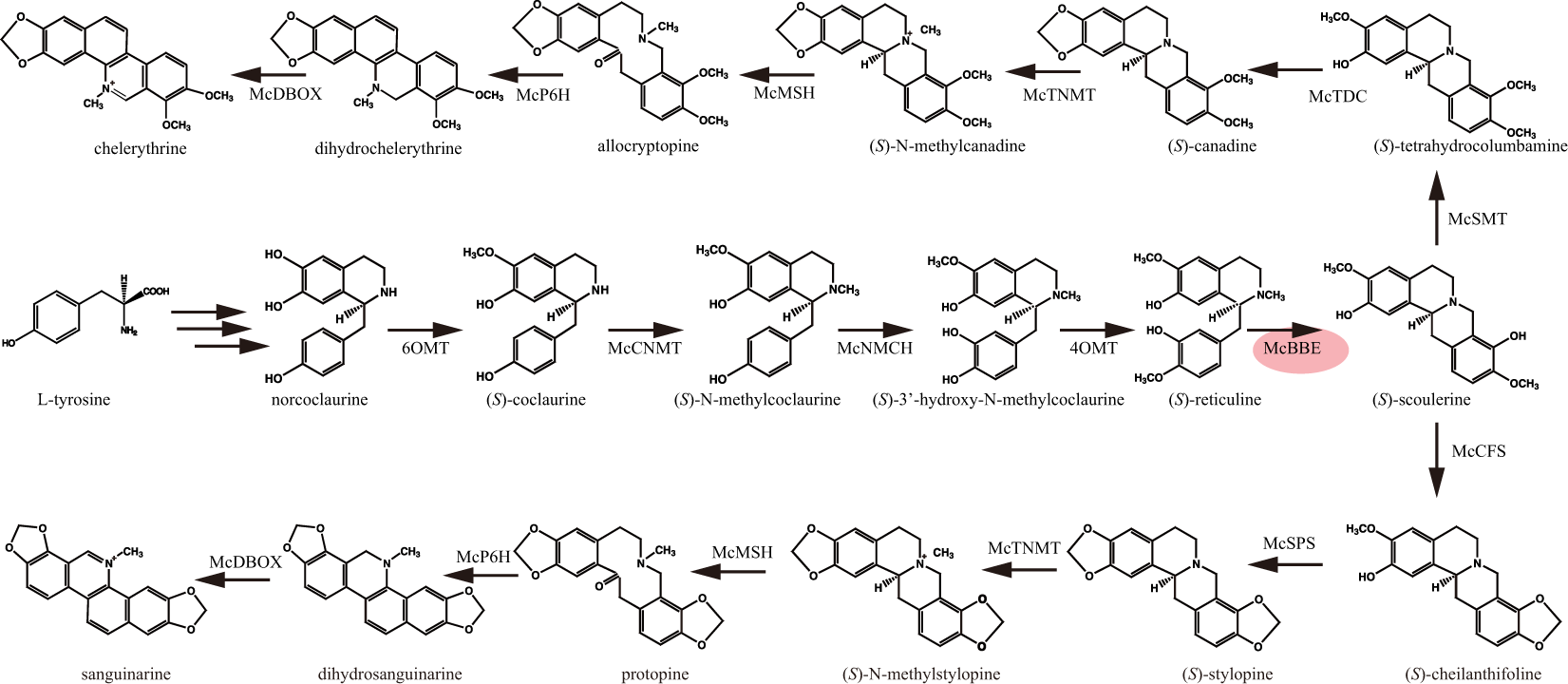

The metabolic pathway of sanguinarine and chelerythrine. Berberine bridge enzyme (BBE) was studied in this work. 6OMT, norcoclaurine 6-O-methyltransferase; CNMT, coclaurine-N-methyltransferase; NMCH, N-methylcoclaurine hydroxylase; 4OMT, 4′-O-methyltransferase; BBE, berberine bridge enzyme; CFS, cheilanthifoline synthase; SPS, stylopine synthase; TNMT, tetrahydroprotoberberine cis-N-methyltransferase; MSH, (S)-cis-N-methylstylopine 14-hydroxylase, P6H, protopine 6-hydroxylase; DBOX, dihydrobenzophenanthridine oxidase; TDC, (S)-canadine synthase; SMT, (S)-scoulerine 9-O- methyltransferase.
