Figure 1
From: Fermi surface topology in a metallic phase of VO2 thin films grown on TiO2(001) substrates

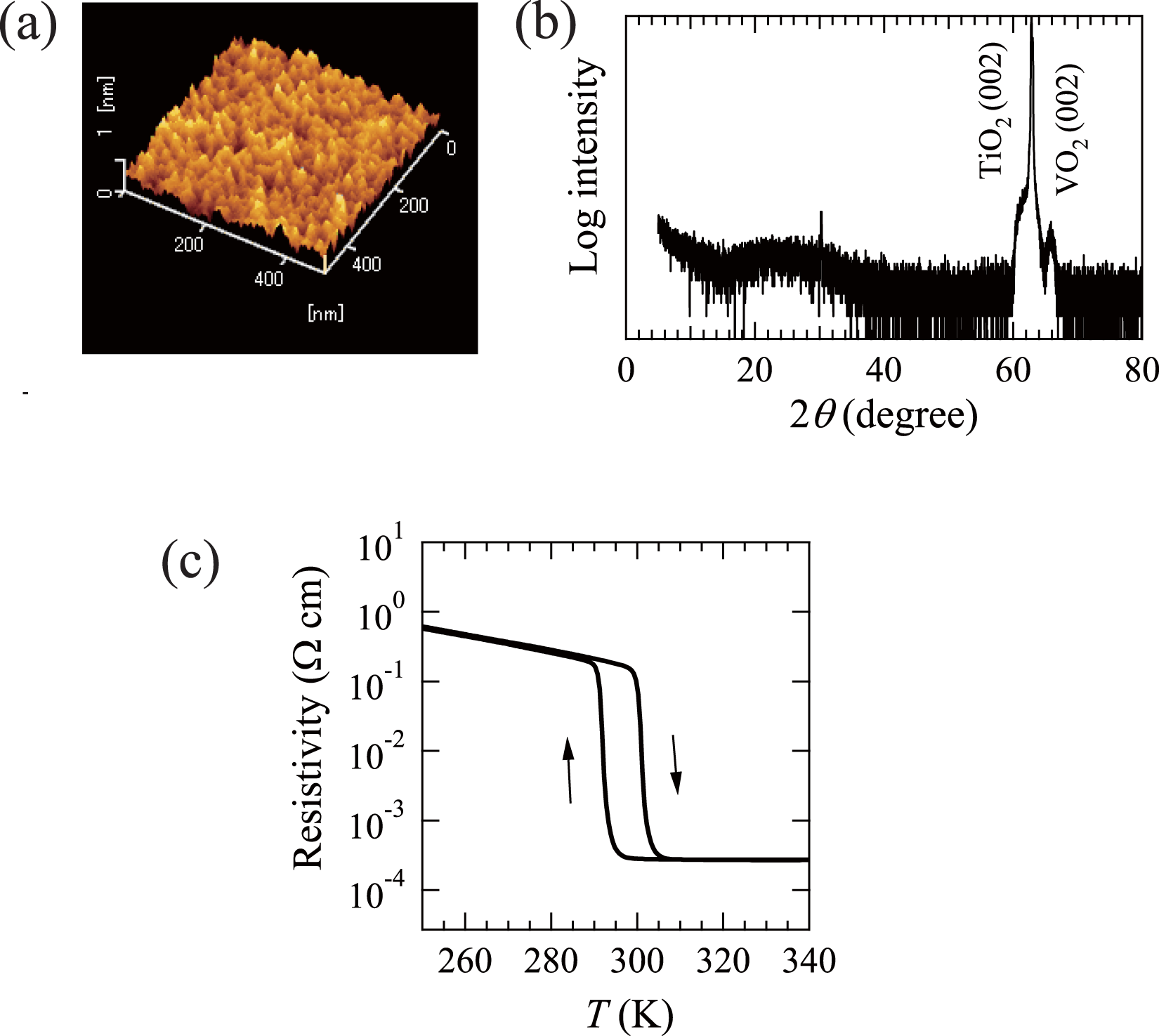

(a) AFM image of VO2 thin films grown on TiO2(001) substrates. The thickness of the VO2 thin films was 11 nm. (b) XRD pattern of VO2 thin films grown on TiO2(001) substrates. (c) Temperature dependence of resistivity for VO2 thin films grown on TiO2(001) substrates.
