Figure 4
From: Taxonomy through the lens of neutral helium microscopy

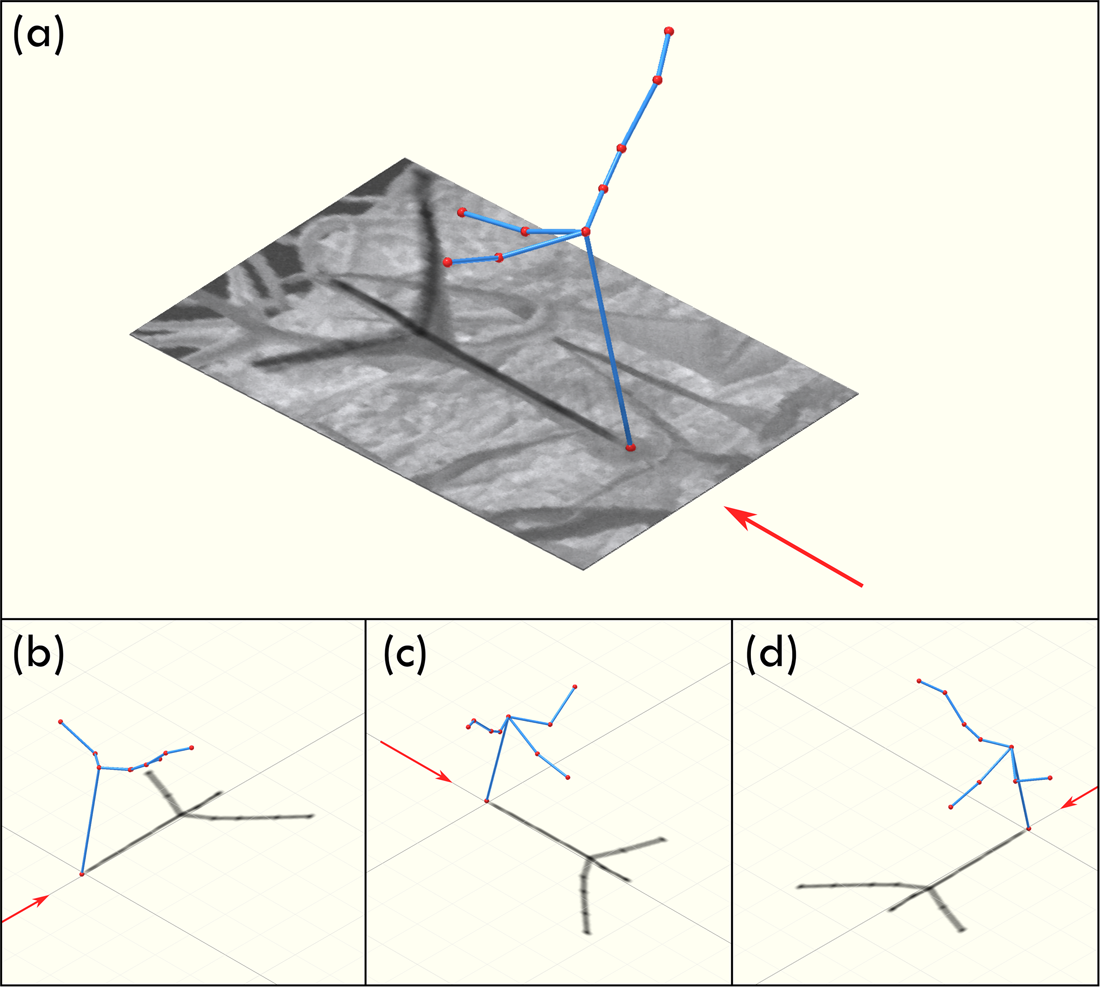

3D wireframe model of a trichome as extracted via stereophotogrammetry, overlaid over the SHeM micrograph from which the coordinates were extracted. Note that, to guide the eye, the model has been lit in the same manner as the incident beam in the SHeM, thus resulting in the produced shadow (ie. the mapping of the 3D object down to a 2D plane) closely matching the observed features. Arrow indicates the direction of the incident helium beam. Insets (b), (c), and (d) show the wireframe model from alternate angles to highlight the 3D topography of the trichome branches.
