Figure 3

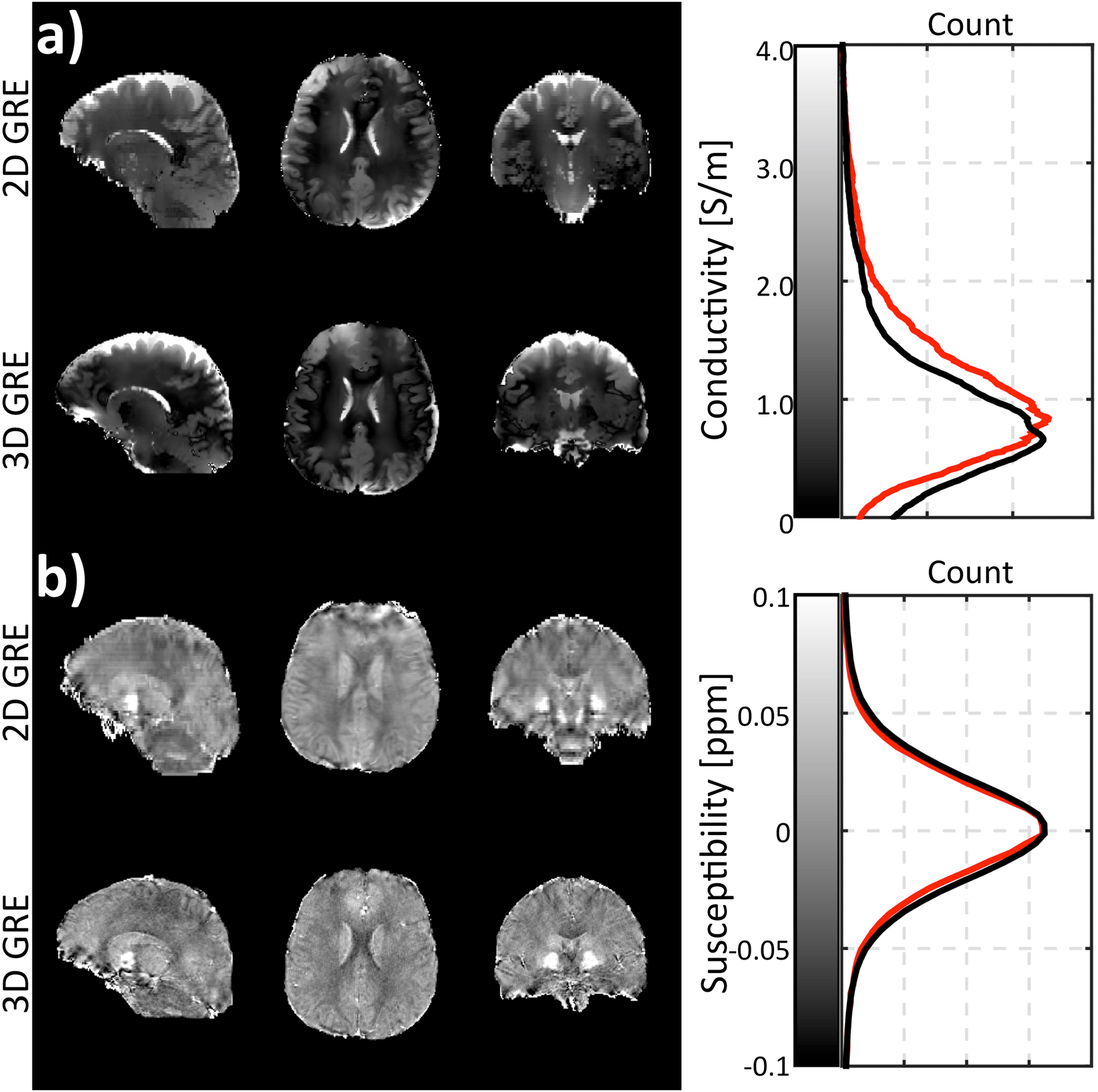

In vivo reconstructed images obtained using the proposed method in comparison to the results from a 3D protocol. Sagittal, transverse and coronal slices of the estimated (a) susceptibility (b) conductivity maps. For each parameter, the first row contains the results of the proposed method, while the second row displays the 3D protocol results. The corresponding histograms are demonstrated on the right of each parametric map. The red line and black line represent the proposed 2D protocol and 3D protocol, respectively.
