From: An MR technique for simultaneous quantitative imaging of water content, conductivity and susceptibility, with application to brain tumours using a 3T hybrid MR-PET scanner

Figure 4

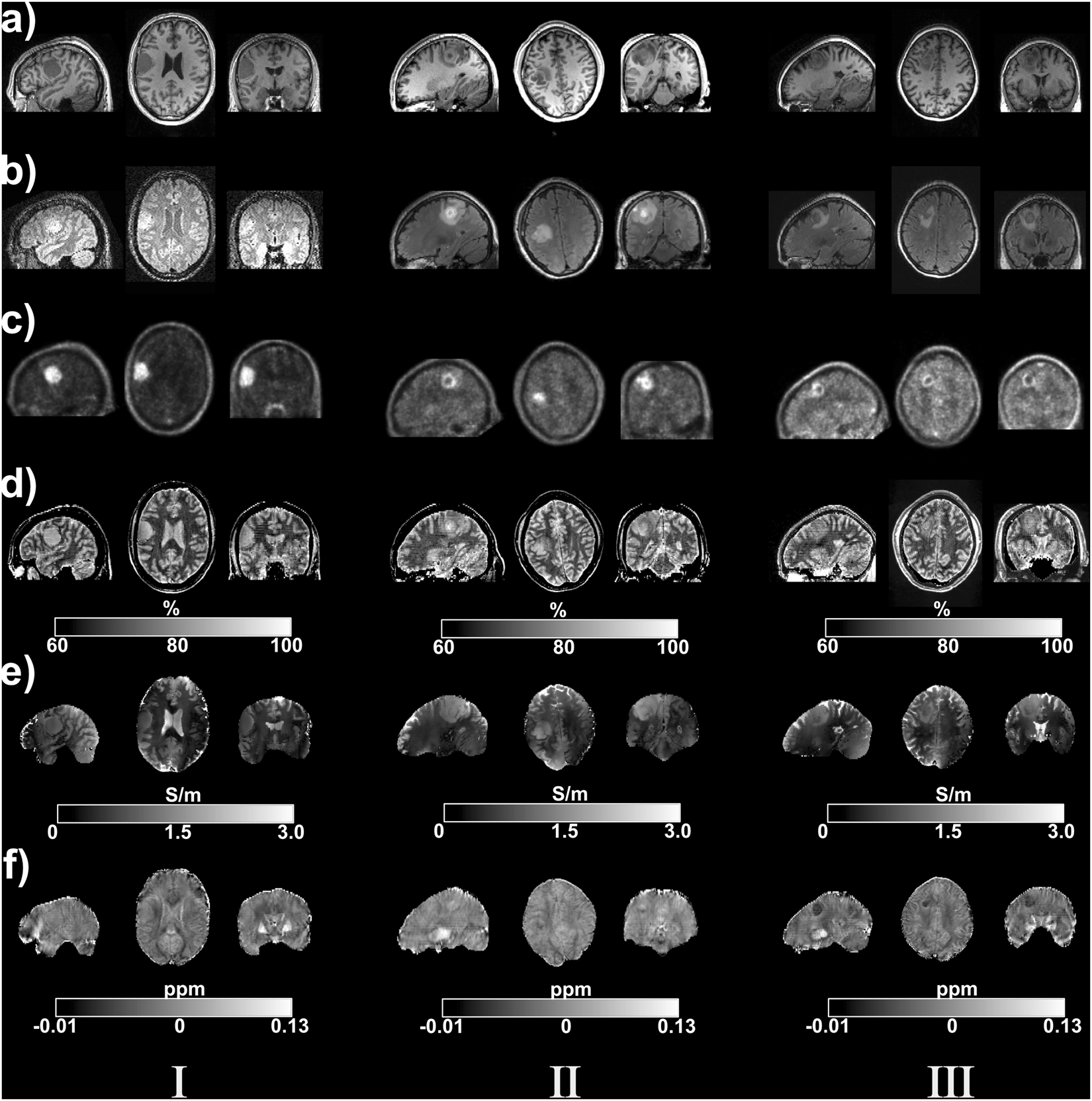

MR and PET images from three tumour patients. Sagittal, transverse and coronal slices through the tumours. (a) T1-weighted MPRAGE (b) proton FLAIR (c) FET-PET (d) quantitative water content (e) electrical conductivity and (f) quantitative susceptibility images. The colour bar indicates the water content in percentage, susceptibility in ppm and conductivity in S/m in the images.
