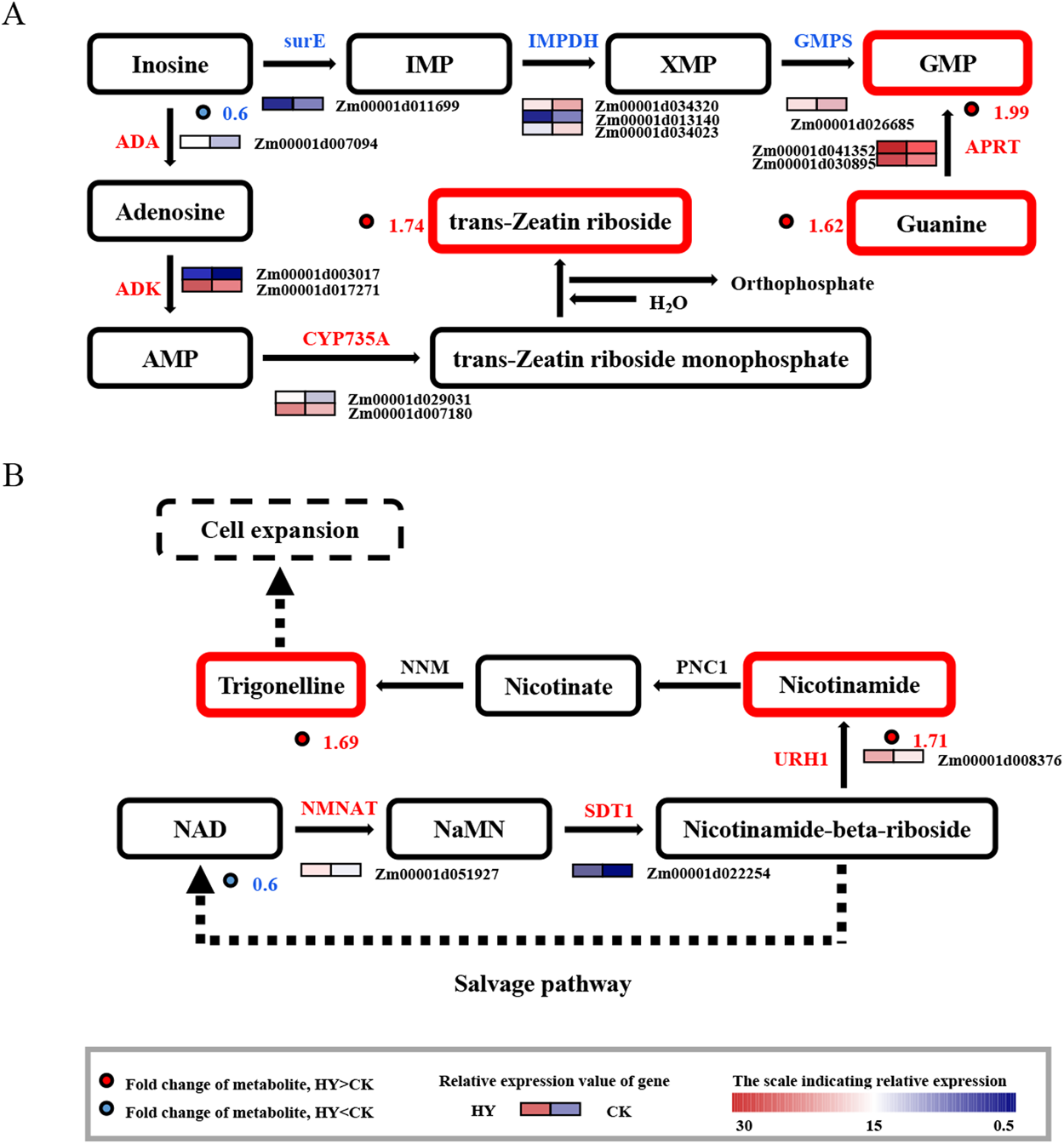

Figure 5
Integrated metabolite changes and differentially expressed genes for analyzing the secondary metabolite biosynthetic pathways. Differentially accumulated metabolites indicated in red and blue were upregulated and downregulated, respectively. The red-to-blue colors in squares indicate high-to-low gene expression levels, respectively. (A) surE, 5′-nucleotidase; IMPDH, inosine-5′-phosphate dehydrogenase; GMPS, guanosine 5′-monophosphate synthetase; APRT, adenine phosphoribosyl transferase; ADA, adenosine deaminase; ADK, adenosine kinase; CYP735A, cytokinin trans-hydroxylase; (B) NMNAT, nicotinamide mononucleotide adenylyltransferase; SDT1, pyrimidine and pyridine-specific 5′-nucleotidase; URH1, uridine nucleosidase; PNC1, nicotinamidase; NNM, nicotinamide N-methyltransferase.
