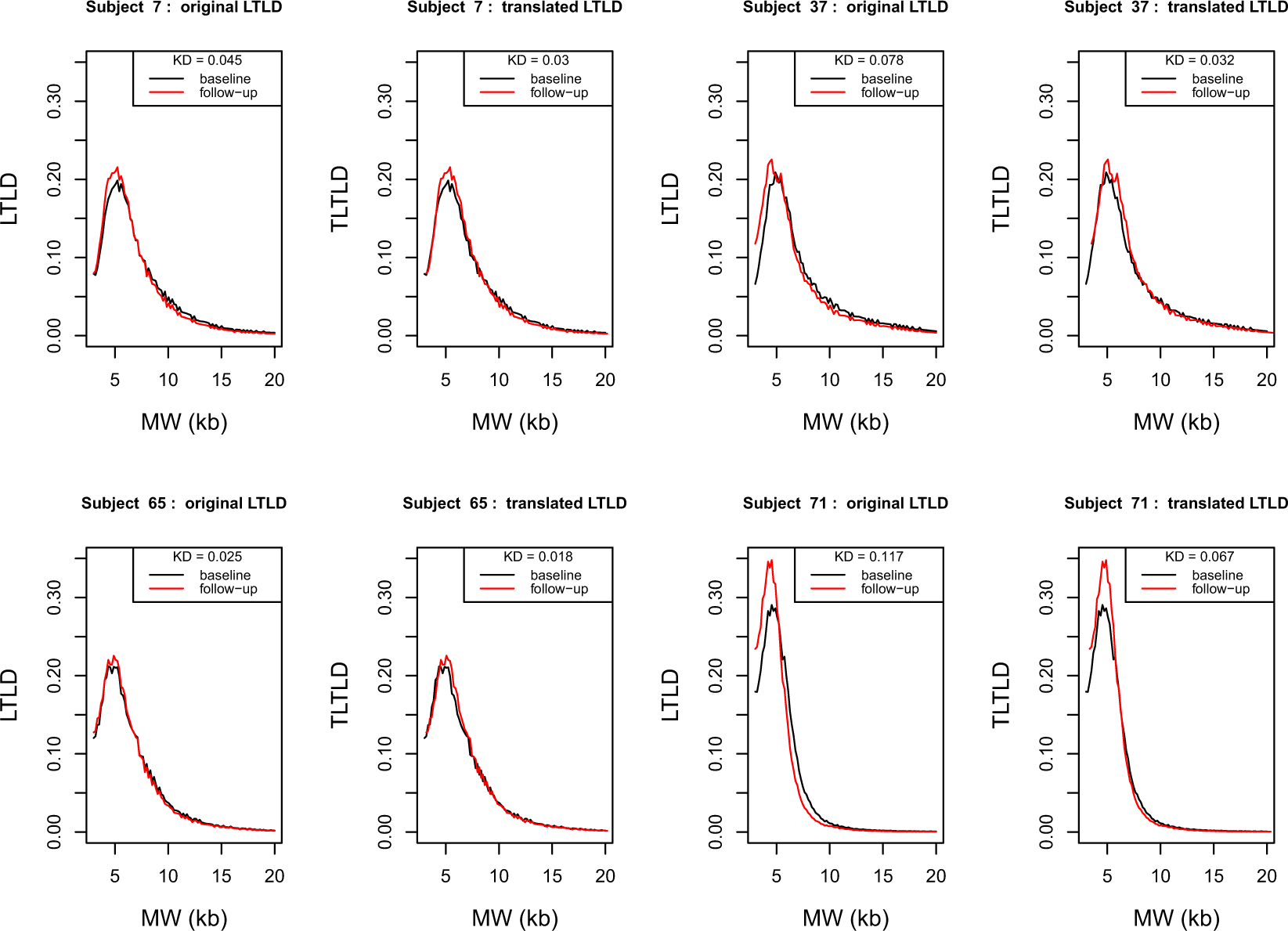

Figure 2
From: The individual’s signature of telomere length distribution
Original LTLD and Translated LTLD (TLTLD) of 4 subjects at baseline and follow-up. LTLD = Leukocyte telomere length distribution; TLTLD = Translated leukocyte telomere length distribution; MW = molecular weight; kb = kilobase; KD = Kolmogorov distance Each. pair of panels shows the two LTLDs of one subject at baseline (in black) and follow-up (in red) and their transformation in TLTLD. The Kolmogorov distances between the two LTLD and the two TLTLD are given. The four subjects are respectively subject 7 (upper left panels), 37 (upper right panels), 65 (lower left panels) and 71 (lower right panels).
