Figure 3
From: Caspase-4 disaggregates lipopolysaccharide micelles via LPS-CARD interaction

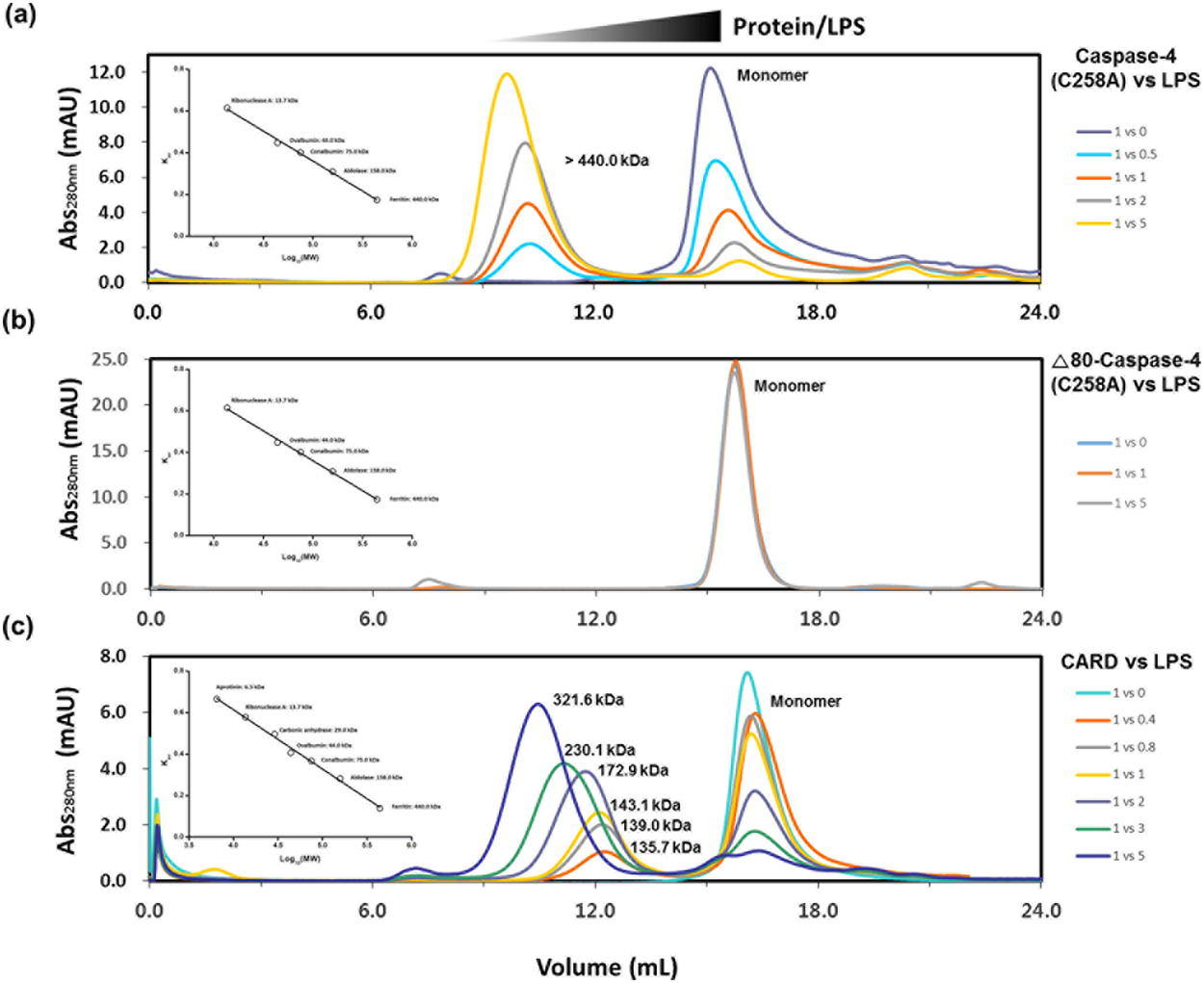

E. coli purified caspase-4(C258A) and CARD form LPS/protein complexes in a molar ratio dependent manner. SEC elution profiles of different molar ratios of Ra-LPS/Caspase-4 (C258A) (a), Ra-LPS/Δ80 caspase-4 (C258A) (b), and Ra-LPS/CARD domain complex (c) from Superdex200 10/300 gl columns calibrated with protein standards. Calibration curves are presented in insets and enlarged calibration curves are presented in Supplementary Fig. S6.
