Figure 4
From: Caspase-4 disaggregates lipopolysaccharide micelles via LPS-CARD interaction

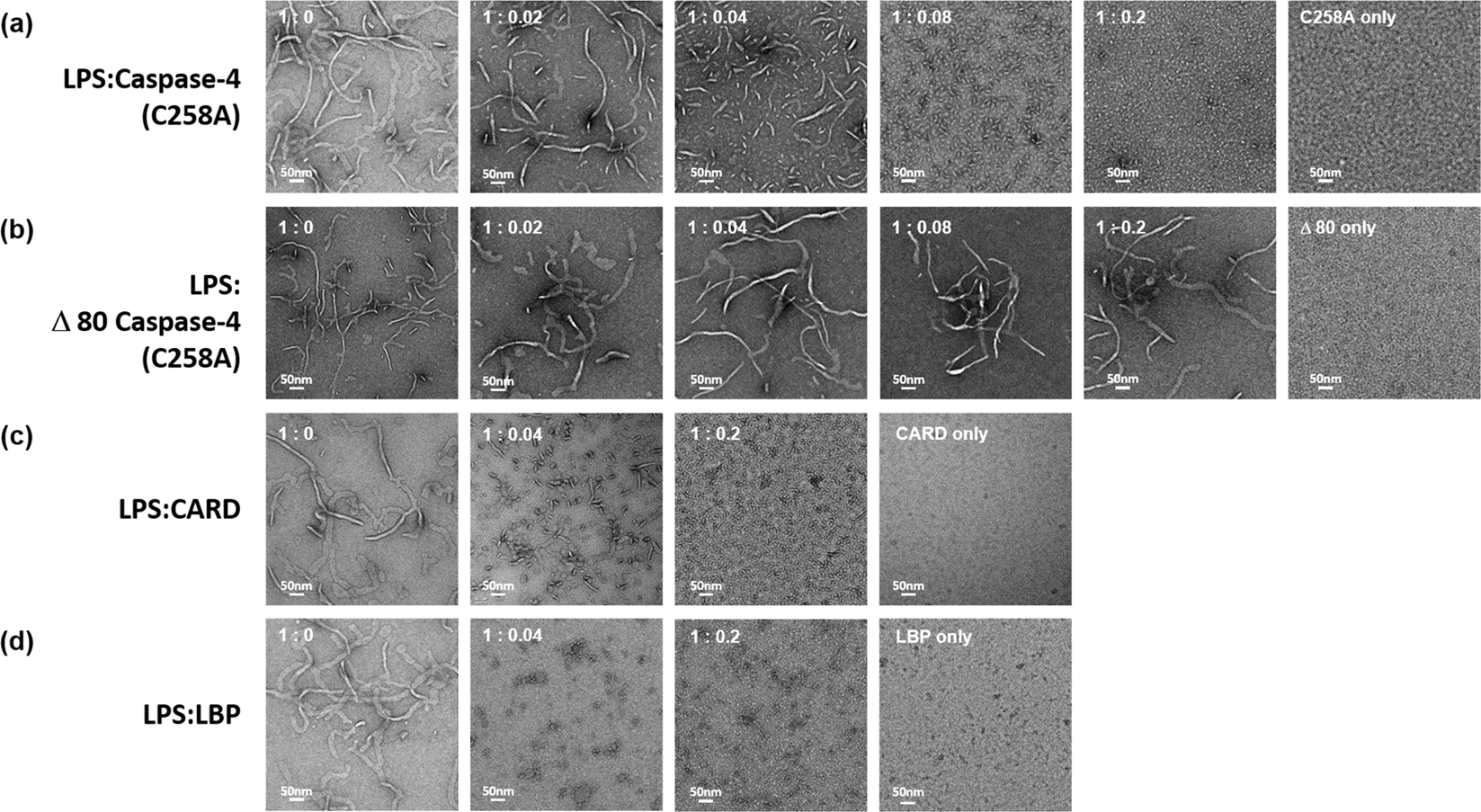

Caspase-4 disaggregates large LPS micelles to smaller LPS/protein complexes via the CARD domain. TEM images of different molar ratios of Ra-LPS/caspase-4 (C258A) (a), Ra-LPS/Δ80 caspase-4 (C258A) (b), Ra-LPS/CARD (c), and Ra-LPS/LBP (d) were visualized by negative-staining. Scale bar represents 50 nm.
