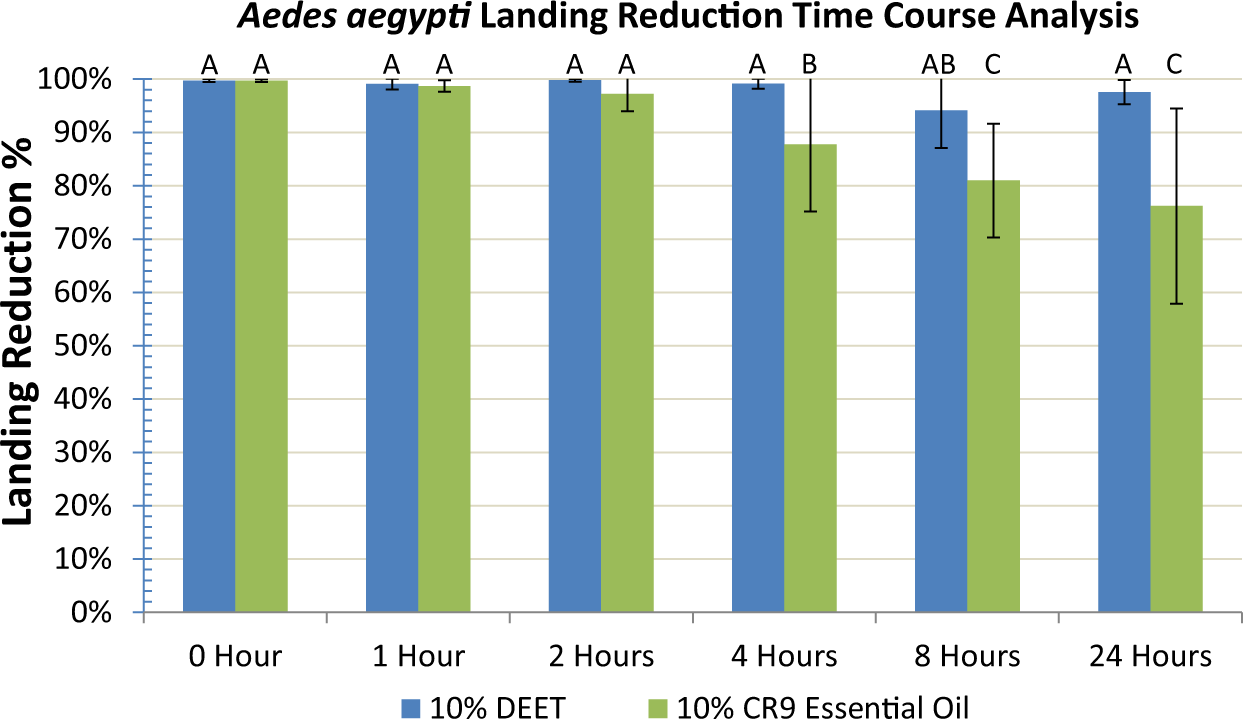

Figure 5
From: Repellency Assessment of Nepeta cataria Essential Oils and Isolated Nepetalactones on Aedes aegypti
Landing reduction time course analysis for Aedes aegypti mosquitoes. Time course analysis comparing the landing reduction percentages of Aedes aegypti mosquitoes with 10% DEET and crude CR9 essential oil treatments over 24 hours. The samples were tested at 0 hour, 1 hour, 2 hours, 4 hours, 8 hours and 24 hours after application of the treatments. Values are presented as means ± standard deviation (SD). Data was analyzed by an unpaired, two-tailed student’s t-test to identify significant differences (P < 0.05).
