Figure 6
From: STC1 and PTHrP Modify Carbohydrate and Lipid Metabolism in Liver of a Teleost Fish

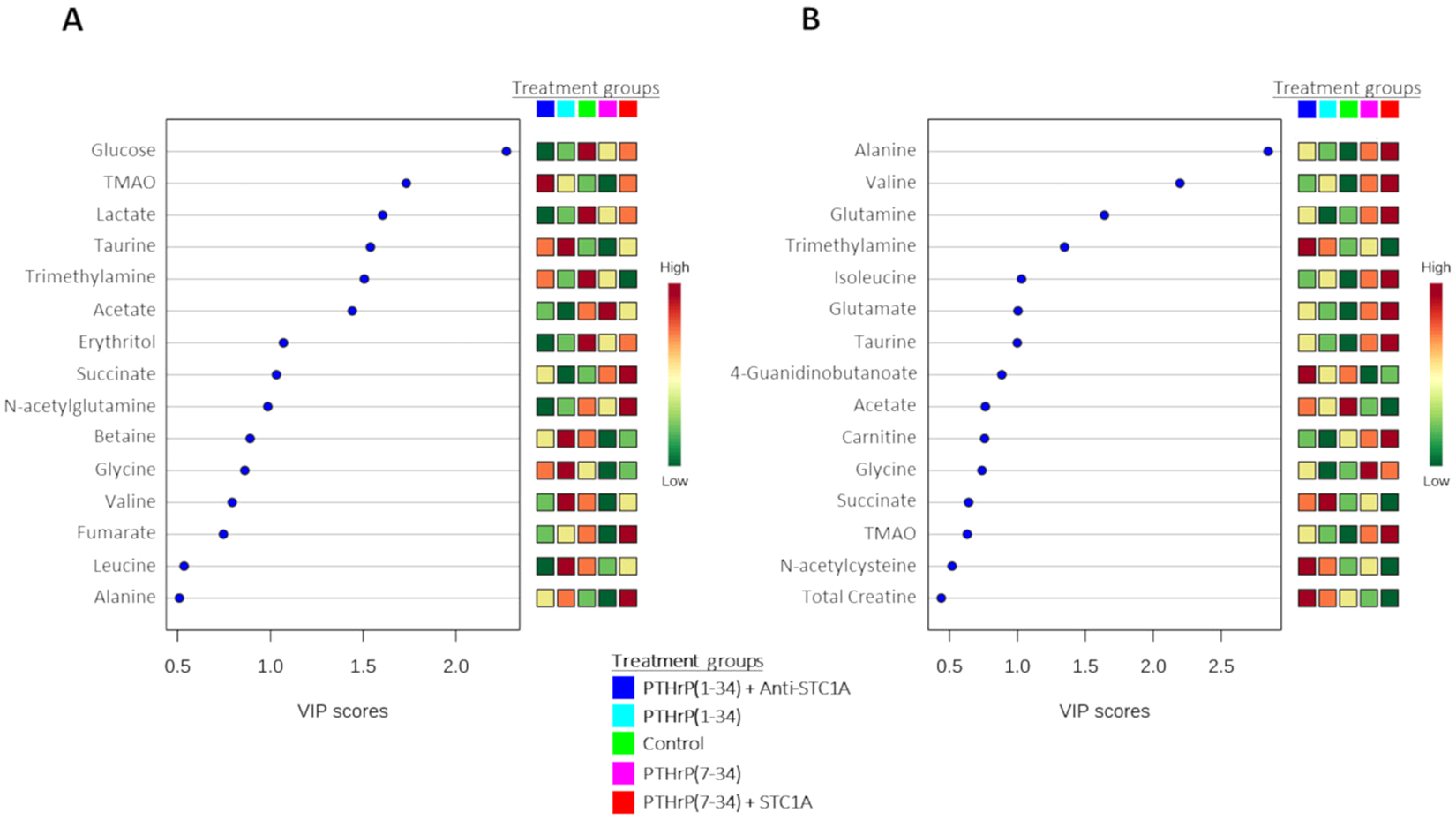

Important features identified by PLS-DA and VIP scores at 6 h (A) and at 24 h (B) of hormone treatments. The TOP 15 important features which correspond to the metabolites are indicated on the left and are organized by descending order of value of variable importance in projection (VIP) score in component 1. The coloured boxes on the right indicate the relative concentrations of the corresponding metabolite in each group under study. The relative concentration of metabolites is represented by a coloured scale from green to red indicating the low and high, respectively. The experimental treatment groups are the same and have the same colours as in Fig. 1.
