Figure 8
From: Optical limiting properties of surface functionalized nanodiamonds probed by the Z-scan method

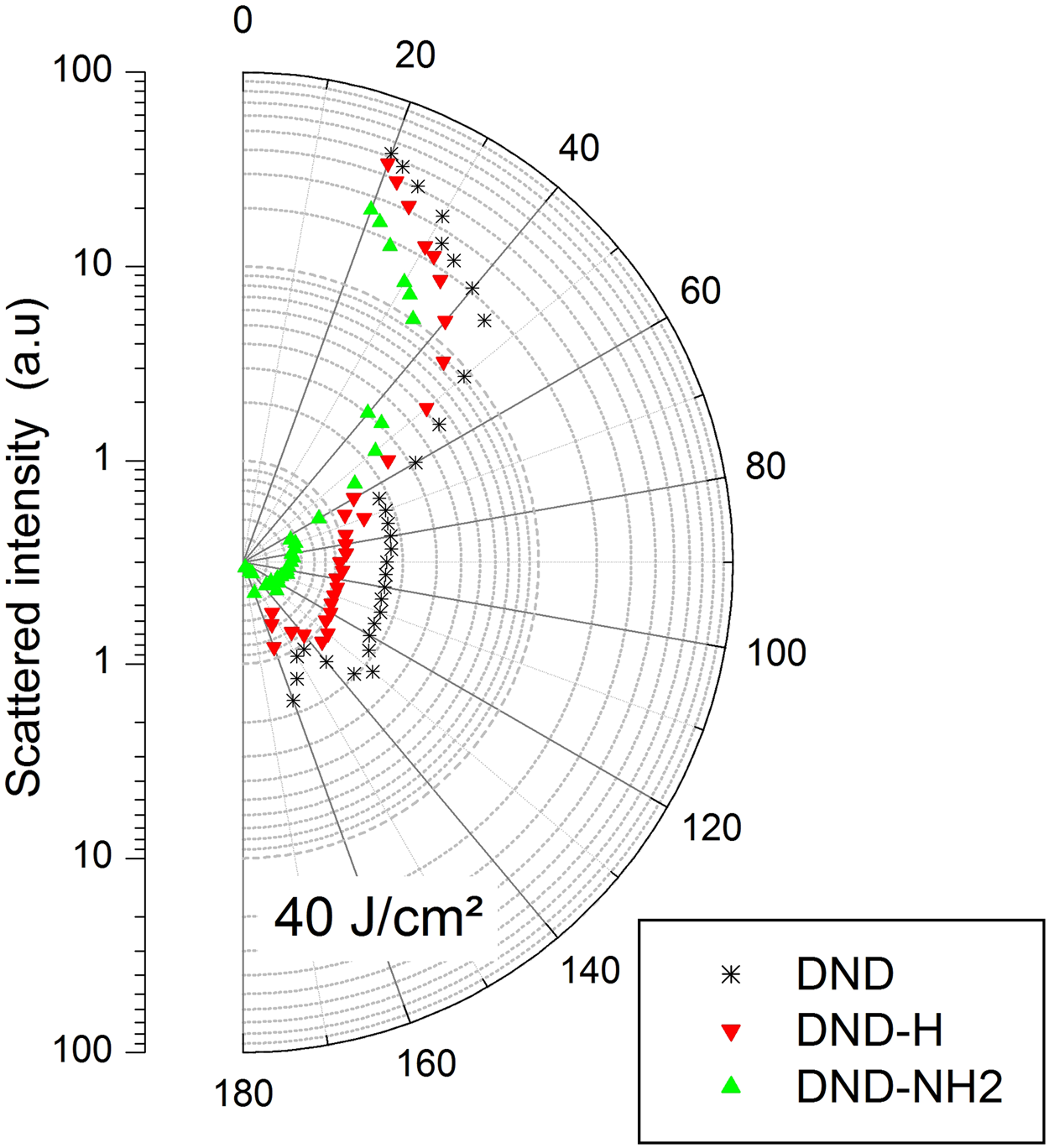

Semilog plot of the angular distribution of the scattered intensity for the DND, DND-H and DND-NH2 suspensions at F = 40 J/cm². The laser radiation is incident from the bottom to the top.
