Figure 1
From: Discovery and evaluation of inhibitor of LARP6 as specific antifibrotic compound

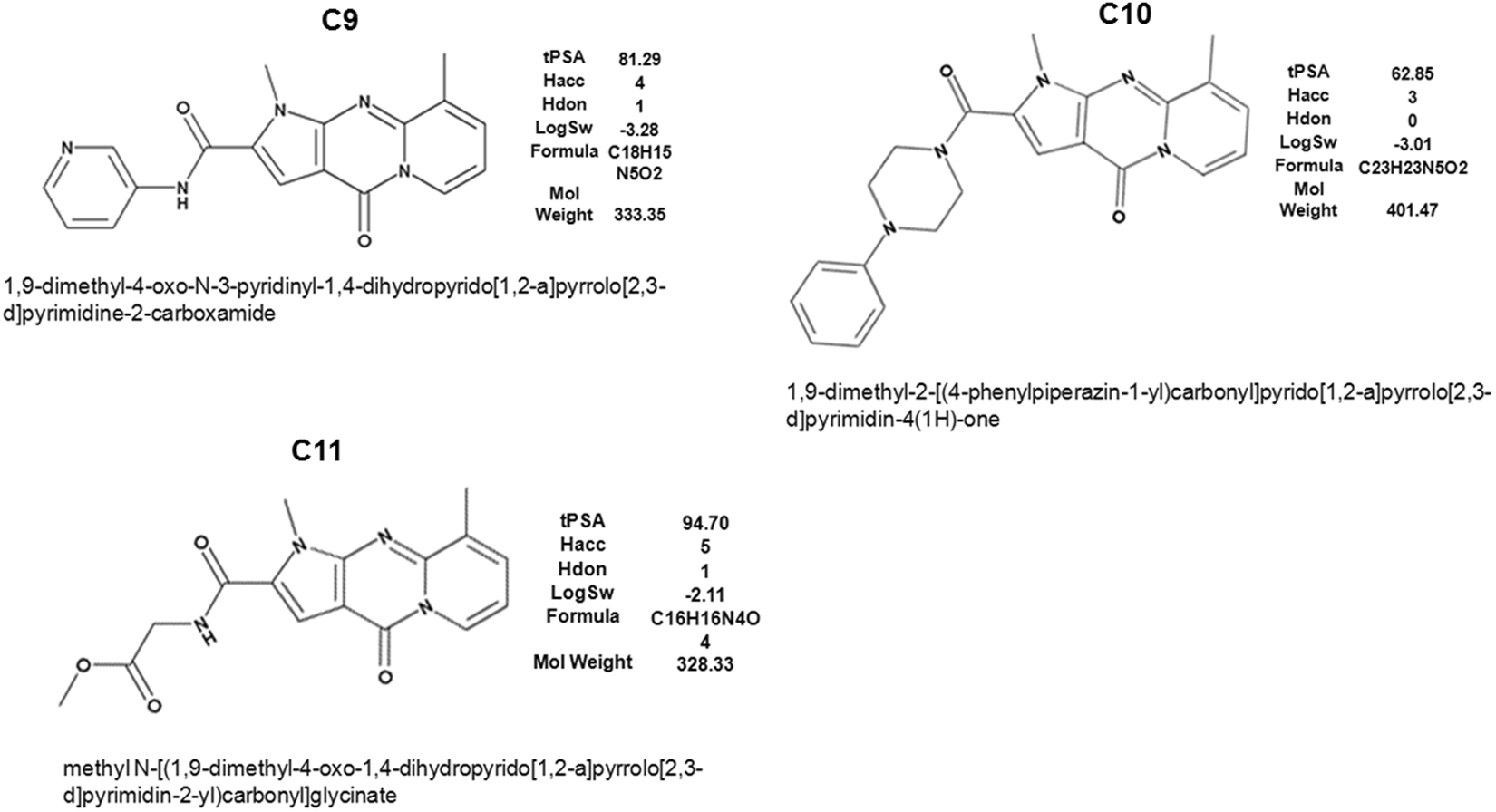

Structure of chemical compounds identified in high throughput screen. The structure of three compounds with a common tri-cyclic core. Their chemical names and drug-like parameters (tPSA, topological polar surface area; Hacc, number of H-bond acceptors; Hdon, number of H-bond donors; LogSw, logarithm of solubility in water, mol/L) are indicated.
