Figure 4

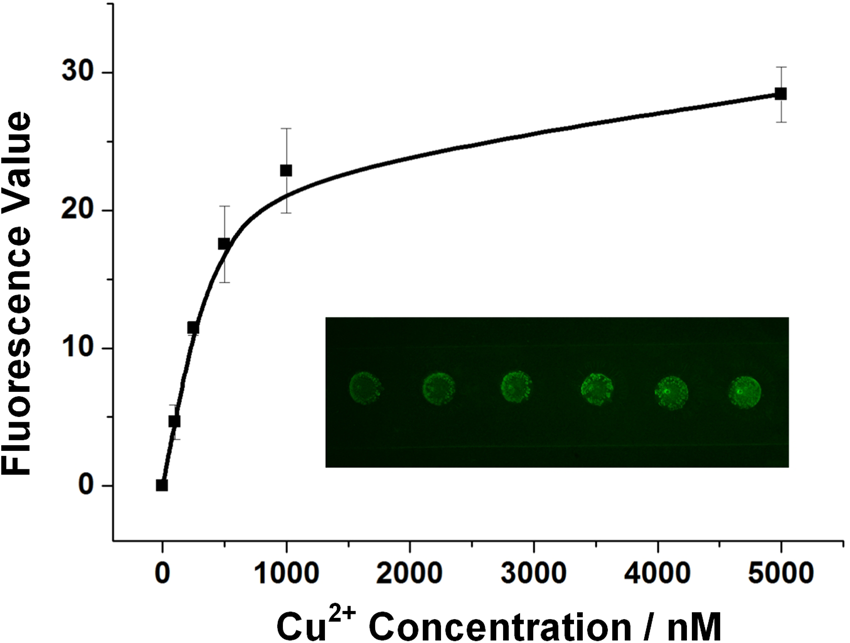

Calibration curve between fluorescence value and Cu²⁺ concentration. The inserted photo shows that six microcapsules on one chip are separately injected six Cu²⁺ solutions whose concentration range from 0 nM, 100 nM, 200 nM, 500 nM, 1 μM to 5 μM.
