From: Nano-Antennas Based on Silicon-Gold Nanostructures

Figure 1

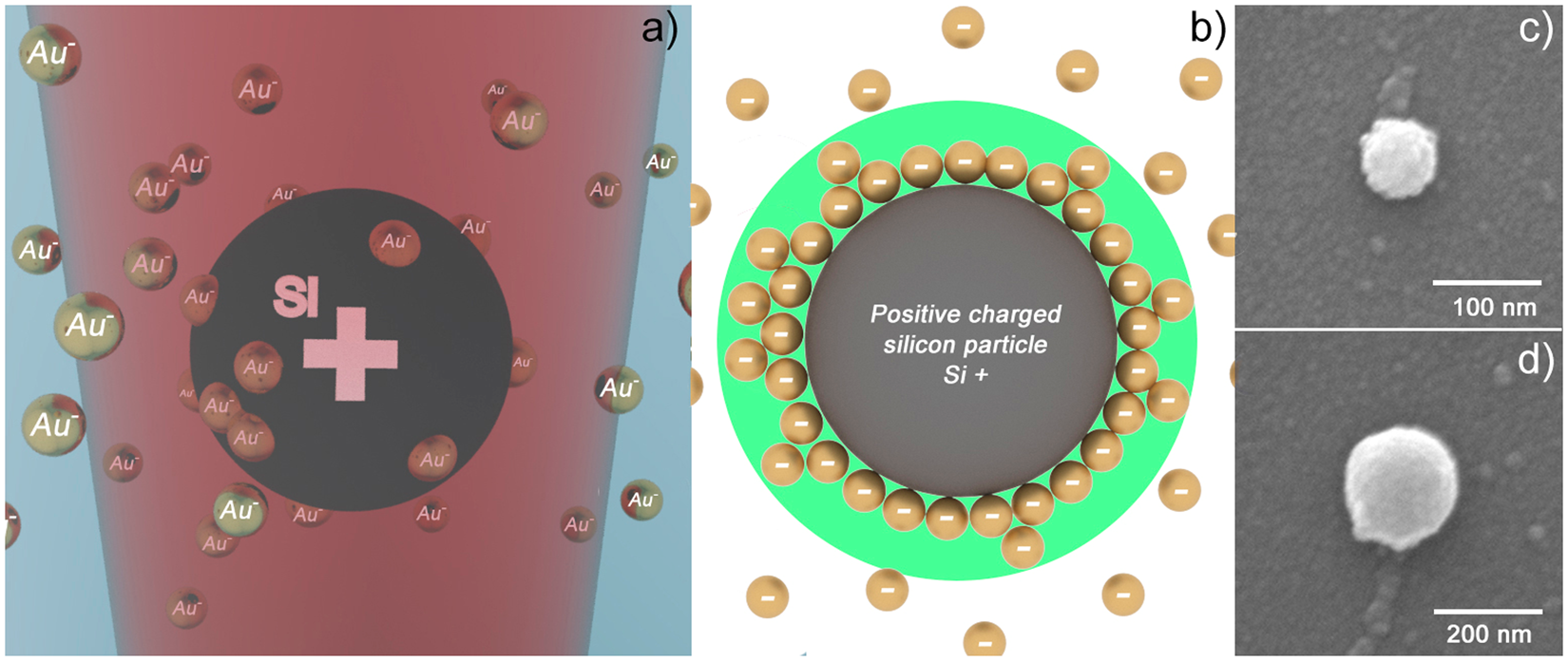

From left to right: the schematic image of the hybrid NPs formation under effect of the laser action on a liquid system consisting of Si and Au NPs (a); the scheme of the electrical double layer formation near the Si NP (b); the SEM-images of hybrid clusters composed by central silicon parts having a diameter of 100 nm and 200 nm and 10 nm gold nanoparticles covering the central silicon NP (c,d).
