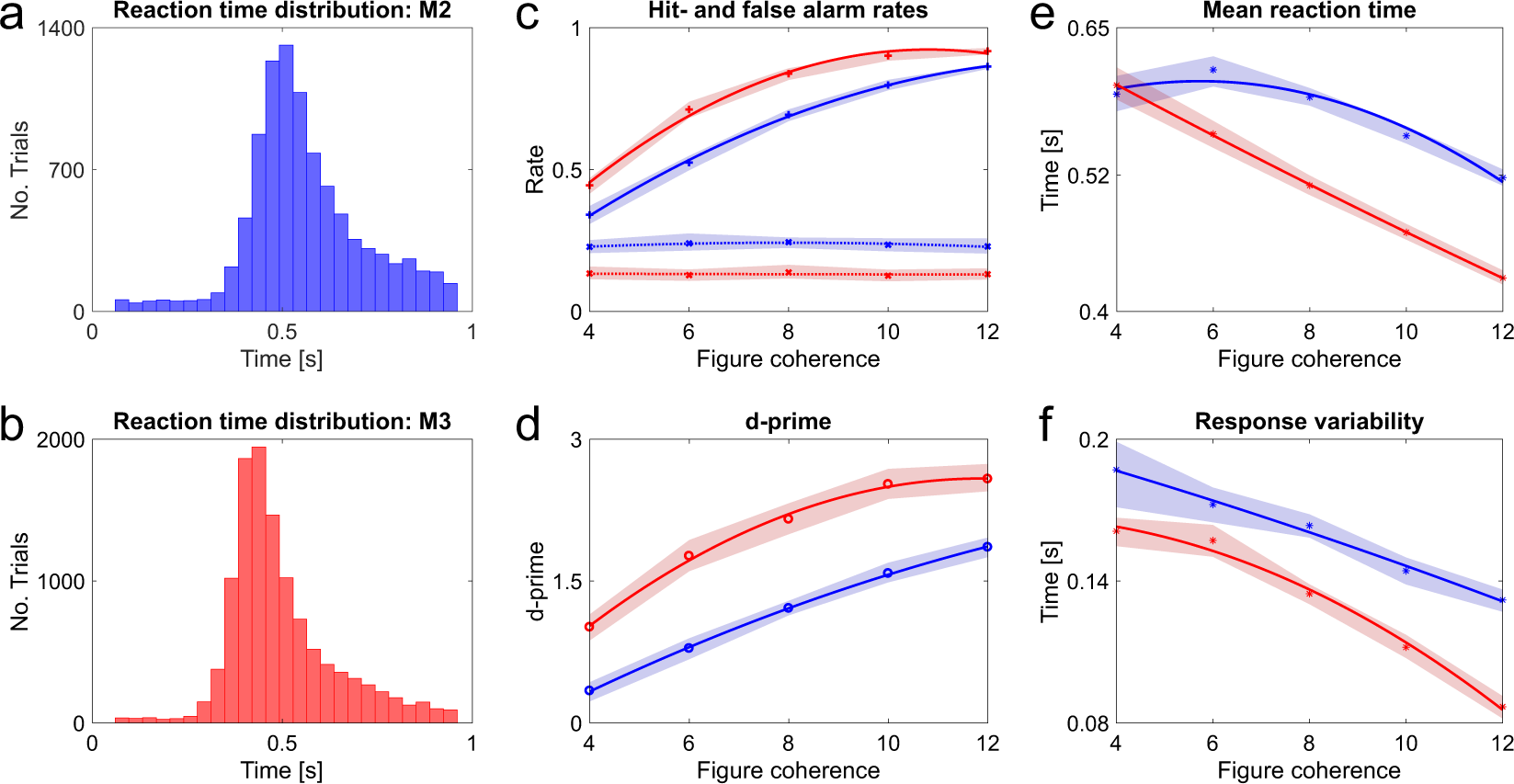

Figure 2
From: Auditory figure-ground analysis in rostral belt and parabelt of the macaque monkey
Summary of behavioural performance for active figure detection task. All data colour-coded: Blue –M2, Red – M3. (a) Reaction time histogram across all coherence conditions for M2 (b) and M3. RT data are corrected for sound output latency. (c–f) Mean values across all sessions shown for each coherence condition and subject. Shaded areas represent 95% confidence intervals. Solid and dashed lines show fitted data for each monkey, respectively. (c) Hit rates (solid line) and false alarm rates (dashed lines). (d) D-prime values. (e) Mean reaction times. (f) Response variability. Results shown in d, e and f were tested via repeated measures ANOVA and were significant beyond p < 0.001. See Supplementary Information.
